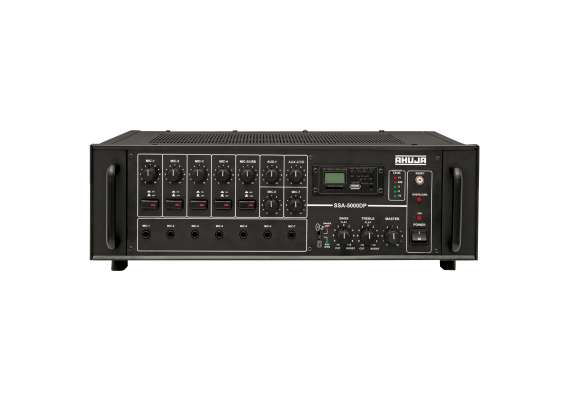

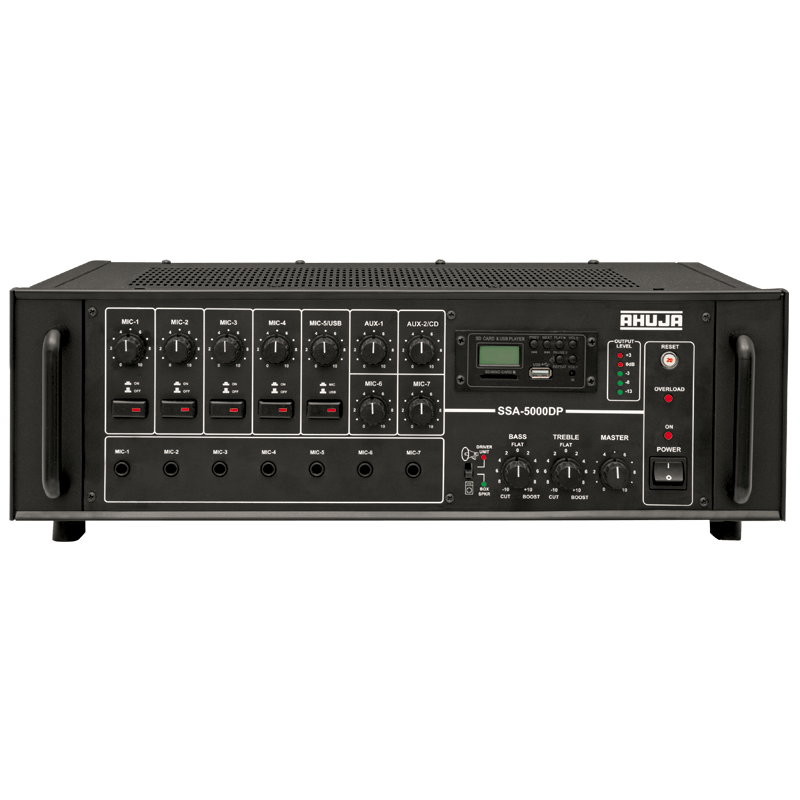

Ahuja SSA-5000DP PA Mixer Amplifier
SSA-5000DP
Preamplifier and Line Output for connecting to a Booster Amplifier.
Line Input for connecting the output from any external mixer or another amplifier.
Resettable circuit breaker for protection against overload and short circuit.
Instant transfer to DC power (Car Battery) if AC power fails.
Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Power Output: 750W Max., 500W RMS at 10% THD 450W RMS at 5% THD, 415W RMS at 2% THD
Output Regulation: ≤ 2 dB, no load to full load at 1kHz
Input Channels: 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ,1 × CD 200mV/50 kΩ, 1 × Line 1V/50kΩ
Frequency Response: 50-15,000Hz ±3dB
Signal to Noise Ratio: 60dB
Tone Controls: Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output: Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output: 4Ω, 8Ω, 70V & 100V
Digital Player: MP3 Player with USB, SD and MMC Card Reader
Power Supply: AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
Power Consumption: AC: 1000VA DC: 8A
Dimensions: W510 × H172 × D385 mm
Weight: 27.0kg
Line Input for connecting the output from any external mixer or another amplifier.
Resettable circuit breaker for protection against overload and short circuit.
Instant transfer to DC power (Car Battery) if AC power fails.
Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Power Output: 750W Max., 500W RMS at 10% THD 450W RMS at 5% THD, 415W RMS at 2% THD
Output Regulation: ≤ 2 dB, no load to full load at 1kHz
Input Channels: 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ,1 × CD 200mV/50 kΩ, 1 × Line 1V/50kΩ
Frequency Response: 50-15,000Hz ±3dB
Signal to Noise Ratio: 60dB
Tone Controls: Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output: Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output: 4Ω, 8Ω, 70V & 100V
Digital Player: MP3 Player with USB, SD and MMC Card Reader
Power Supply: AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
Power Consumption: AC: 1000VA DC: 8A
Dimensions: W510 × H172 × D385 mm
Weight: 27.0kg
