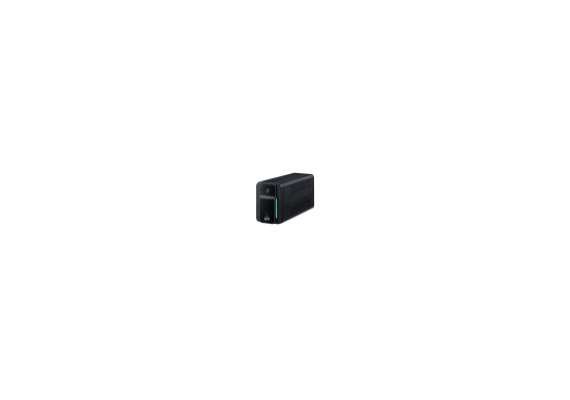

APC BVX700LUI-MS 700va Back up Easy Ups
BVX700LUI-MS
230V, AVR, USB Charging Universal Sockets - No Power cables
| input voltage | 230 V AC 1 phase |
|---|---|
| output voltage | 230 V AC 1 phase |
| rated power in W | 360 W |
| rated power in VA | 700 VA |
| plug standard | IEC 60320 C14 |
| nb of power socket outlets | 2 universal |
| cable length | 1.22 m |
| number of cables | 1 |
| battery type | Lead-acid battery |
| provided equipment | User manual |
General
| max runtime | 120 min |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| redundant | No |
| UPS size | WS |
Physical
| colour | Black |
|---|---|
| height | 13.8 cm |
| width | 9.8 cm |
| depth | 31 cm |
| net weight | 4.2 kg |
| mounting support | Floor |
| mounting preference | No preference |
| mounting mode | Not rack-mountable |
| two post mountable | 0 |
| USB compatible | No |
Input
| network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
|---|---|
| input voltage limits | 170...280 V 230 V AC |
| cos phi | 0.51 |
Output
| Maximum configurable power in W | 360 W |
|---|---|
| output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| full load runtime | 00:00:01 360 W |
| graph display | 1 |
| half load runtime | 00:06:00 180 W |
| Maximum configurable power in VA | 700 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
Conformance
| product certifications | CE CB |
|---|---|
| standards | CE EN/IEC 62040-1 EN/IEC 62040-2 |
| equipment protection policy | Lifetime : 50000 euros |
Environmental
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % non-condensing |
| operating altitude | 0...3000 m |
| ambient air temperature for storage | -15…40 °C |
| storage Relative Humidity | Non-condensing 0…95 >#/span### |
| storage altitude | 0…3000 m |
| acoustic level | 40 dBA |
| IP degree of protection | IP20 |
