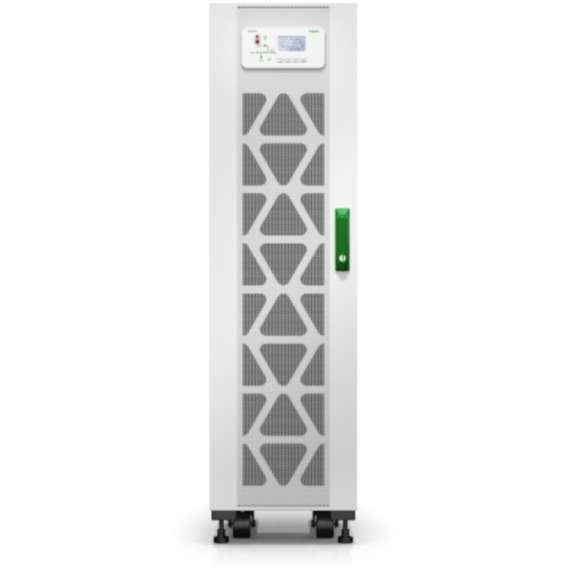

APC E3SUPS15KHB2 3S 40KVA 400V Easy UPS
Specifications
Product
Product name APC Easy UPS 3S 15kVA 400V 12min
Product type UPS (3-phase)
Performance
Apparent power (VA) 15 kVA
Effective power (W) 15 kW
Input 3-phase
Output 3-phase
Runtime (50 % load, max.) 33.0 min.
Runtime (70 % load, max.) 21.0 min.
Runtime (100 % load, max.) 12.5 min.
Network
SNMP / management Optional
General
Technology Double conversion (online)
Battery type VRLA (lead acid)
Battery life 3 - 5 year(s)
Physical properties
Dimensions (W x H x D) 380 x 1400 x 928 mm
Weight 328.0 kg
Version
Version Non-specific
Description
Highly efficient, three-phase UPS with modern functions, excellent specs and durable electrical equipment,
Serial RS232, RS485 and USB interfaces, dry contacts,
2 x internal battery string (1 x empty battery slots),
SNMP network card for simple monitoring and administration on Windows available separately.
Runtime at 15 kW: approx. 12.5 min
Runtime at 10.5 kW: approx. 21 min
Runtime at 7.5 kW: approx. 33 min
Please note:
Important: the UPS must be connected by a professional!
Optional monitoring and administration of the UPS only possible on Windows!
