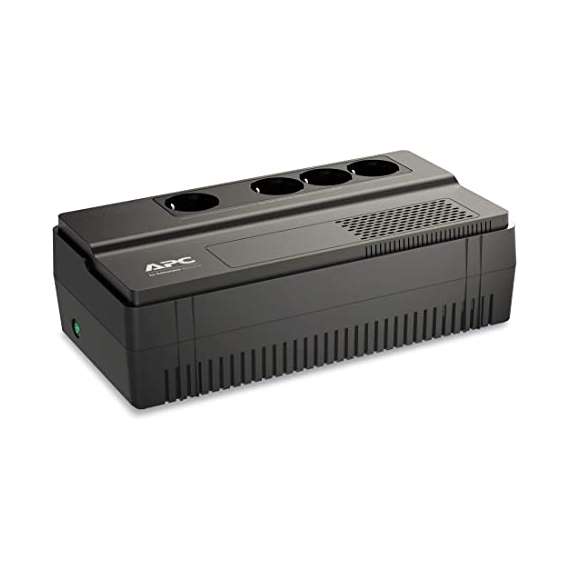

APC BV500I-MSX 500VA Easy UPS
BV500I-MSX
Main
| input voltage | 230 V |
|---|---|
| output voltage | 230 V |
| rated power in W | 300 W |
| rated power in VA | 500 VA |
| plug standard | BS1363A British |
| nb of power socket outlets | 4 universal receptacle |
| cable length | 1.50 m |
| number of cables | 1 |
| battery type | Lead-acid battery |
| provided equipment | User manual |
General
| Number of power module free slots | 0 |
|---|---|
| Number of power module filled slots | 0 |
| redundant | No |
| UPS size | WS |
Physical
| colour | Black |
|---|---|
| height | 9.25 cm |
| width | 16.05 cm |
| depth | 30.5 cm |
| net weight | 3.9 kg |
| mounting preference | No preference |
| mounting mode | Not rack-mountable |
| two post mountable | 0 |
| USB compatible | No |
Input
| network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
|---|---|
| input voltage limits | 170...280 V |
Output
| Maximum configurable power in W | 300 W |
|---|---|
| output frequency | 50/60 Hz +/- 1 Hz unsynchronised |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| graph display | 1 |
| Maximum configurable power in VA | 500 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
Conformance
| product certifications | CE |
|---|
Environmental
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…90 >#/span### |
| operating altitude | 0...6667 ft |
| ambient air temperature for storage | -20…50 °C |
| storage Relative Humidity | 0…90 >#/span### |
| storage altitude | 0.00…15240.00 m |
| acoustic level | 40 dBA |
| IP degree of protection | IP20 |
Batteries & Runtime
| Efficiency | View Efficiency Graph |
|---|---|
| number of battery filled slots | 0 |
| number of battery free slots | 0 |
| battery life | 3…5 year(s) |
| extended runtime | 0 |
Communications & Management
| control panel | LED Status display with on line : on battery |
|---|---|
| alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering
| Surge energy rate | 156 J |
|---|
Packing Units
| Package 1 Weight | 4.2 kg |
|---|---|
| Package 1 Height | 23.7 cm |
| Package 1 width | 14.3 cm |
| Package 1 Length | 37.3 cm |
| SCC14 | 10731304344060 |
Contractual warranty
| Warranty | 2 years repair or replace |
|---|
