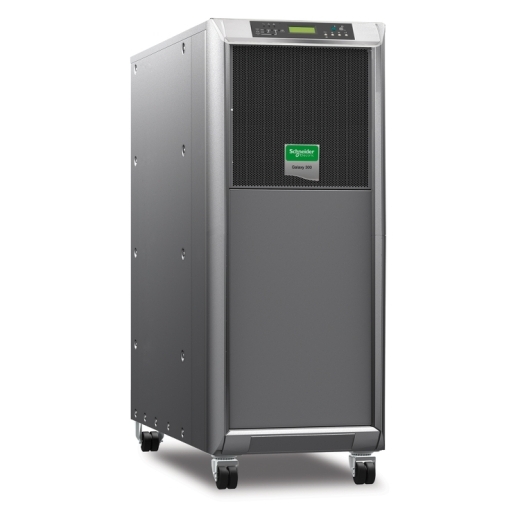

APC Galaxy G3HT80KHB2S 300 80KVA 20MIN

CODE : G3HT80KHB2S

Save 10%

Write a review

$28,422.60

$31,562.44

You save: $3,139.83

BrandAPC ConditionNew Device MountingTower, Rack Mount Warranty IssuerManufacturer

APC Galaxy 300 80KVA 3 Phase UPS G3HT80KHB2S 20MIN

APC Galaxy 300 80KVA 3 Phase UPS G3HT80KHB2S 20MIN from the leading APC dealer in Nairobi Kenya, APC Galaxy 300 80KVA 3 Phase UPS G3HT80KHB2S 20MIN

General

PROVIDED EQUIPMENT	CD with software Dust filter Installation guide Network management card User manual
BYPASS WIRING CONFIGURATION	5 wire (3P + N + E)
NUMBER OF POWER MODULE FREE SLOTS	0
NUMBER OF POWER MODULE FILLED SLOTS	0
REDUNDANT	No
UPS SIZE	WS

Physical

Input

NETWORK FREQUENCY	45…65 Hz
NUMBER OF INPUT CONNECTORS	1 hard wire 5-wire (3P + N + E)
INPUT VOLTAGE LIMITS	323…437 V adjustable 380 V 340…460 V adjustable 400 V 357…477 V adjustable 415 V 340…477 V
INPUTVOLT_OTHER	380 V 415 V
MAXIMUM INPUT CURRENT	122 A
SWITCHING CURRENT CAPACITY	160 A
MAX SHORT TIME WITHSTAND CURRENT	16 kA
INPUT HARMONIC DISTORTION	Less than 5 % for full load
INPUT PROTECTION TYPE	3-pole circuit breaker
INPUT VOLTAGE	400 V 3 phases
INRUSH CURRENT	200 A peak
LOAD POWER FACTOR	0.5 leading to 0.5 lagging

Output

RATED POWER IN W	72000 W
MAXIMUM CONFIGURABLE POWER IN W	72000 W
HARMONIC DISTORTION	Less than 5 >#/td###
OUTPUT FREQUENCY	50/60 Hz +/- 1 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised
OUTPUTVOLT_OTHER	380 V 415 V
CREST FACTOR	3 : 1
UPS TYPE	Double conversion online
OUTPUT CONNECTOR TYPE	Hard wire 5-wire (3P + N + E) 1
OUTPUT VOLTAGE TOLERANCE	+/- 2% static and 100% load step
OUTPUT HARMONIC DISTORTION	< 3% linear load and < 5% non-linear load
OUTPUT OVERLOAD OPERATION	10 minutes at 125% and 30 seconds at 150>#/td###
REQUIRED OUTPUT CURRENT PROTECTION	160 A
BYPASS TYPE	Built-in static bypass
CURVE EQUATION	Efficiency
CURVE FIXED LOSS	0.0124
CURVE LOAD MAXIMUM	100 >#/td###
CURVE LOAD MINIMUM	2 >#/td###
CURVE PROPORTIONAL LOSS	0.0296
CURVE SQUARE LOSS	0.0243
CURVE X-AXIS MAXIMUM	100 >#/td###
CURVE TEST COND ID	Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced PF = 0.8 output.
CURVE X-AXIS MINIMUM	0 >#/td###
CURVE X-AXIS TITLE	Load
CURVE X-AXIS UNITS	Percentage
CURVE Y-AXIS MAXIMUM	100 >#/td###
CURVE Y-AXIS MINIMUM	50 >#/td###
CURVE Y-AXIS TITLE	Efficiency
CURVE Y-AXIS UNITS	Percentage
GRAPH DISPLAY	0
OUTPUT VOLTAGE	400 V 3 phases
MAXIMUM CONFIGURABLE POWER IN VA	80000 VA
RATED POWER IN VA	80000 VA

Conformance

PRODUCT CERTIFICATIONS	CE EAC
STANDARDS	EN/IEC 62040-1 EN/IEC 62040-2 EN/IEC 62040-3 ISTA 2B

Environmental

AMBIENT AIR TEMPERATURE FOR OPERATION	0…40 °C
RELATIVE HUMIDITY	0…95 % non-condensing
OPERATING ALTITUDE	0…3000 ft
AMBIENT AIR TEMPERATURE FOR STORAGE	-15…40 °C
STORAGE RELATIVE HUMIDITY	0…95 % Non-condensing
STORAGE ALTITUDE	0.00…4572.00 m
ACOUSTIC LEVEL	65 dBA
SHOW NOTE OP TEMPERATURE	No
IP DEGREE OF PROTECTION	IP20

Batteries & Runtime

BATTERY TYPE	Lead-acid battery
NUMBER OF BATTERY FILLED SLOTS	0
NUMBER OF BATTERY FREE SLOTS	0
ADDITIONAL INFORMATION	KW/kVA = 0.9 PF with ambient temp up to 25°C. kW/kVA = 0.8 PF with ambient temp above 25°C
LIQUID VALUE	0
BATTERY VOLTAGE	+/- 192 V (split battery referenced to neutral)
DISCHARGE BATTERY VOLTAGE	+/- 154 V
BATTERY CURVE	B
BATTERY POWER IN VAH	0 VAh runtime
BATTERY LIFE	3…5 year(s)
EXTENDED RUNTIME	0

Communications & Management

PREINSTALLED DEVICE	Network management card
CONTROL PANEL	Multifunction LCD status and control console
EMERGENCY POWER OFF	Yes

Packing Units

Offer Sustainability

EU ROHS DIRECTIVE	Under investigation
MERCURY-FREE	Yes
ROHS EXEMPTION INFORMATION	Yes
ENVIRONMENTAL DISCLOSURE	Product Environmental Profile
CIRCULARITY PROFILE	End of Life Information
OPTIMIZED ENERGY EFFICIENCY	Energy-efficient product
