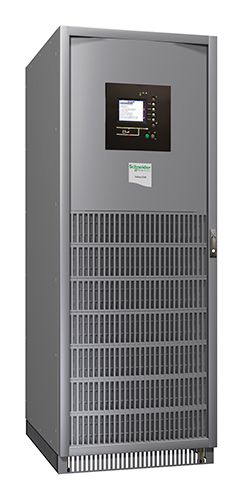

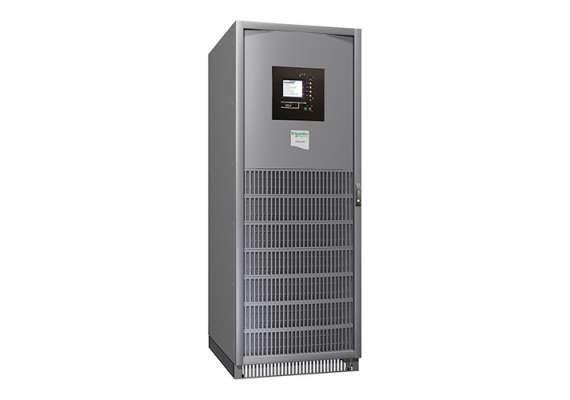

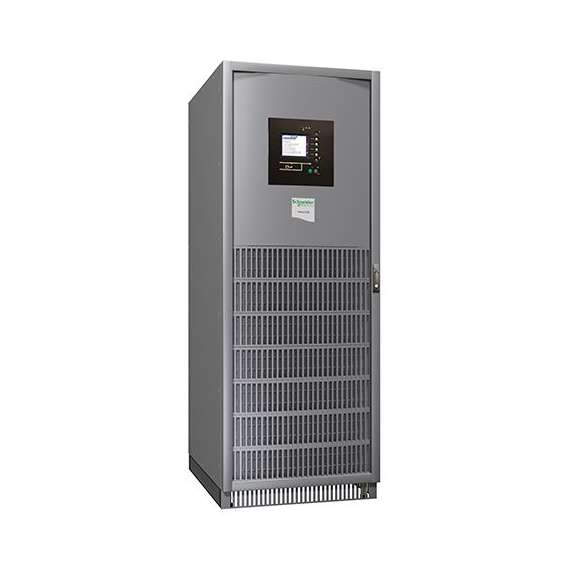

APC Galaxy G55TUPSM100HS 5500 100KVA Parallel Smart UPS

CODE : G55TUPSM100HS

Write a review

$23,500.13

BrandAPC ConditionNew Device MountingTower Warranty IssuerManufacturer

PROVIDED EQUIPMENT	Installation guide Network management card Start-up service User manual
BYPASS VOLTAGE TOLERANCE	+/- 10 % settable from +/- 4/6/8 and 10 >#/td###
MAX BYPASS INPUT CURRENT	144 A
NUMBER OF TARE POWER	2 W
NUMBER OF POWER MODULE FREE SLOTS	0
NUMBER OF POWER MODULE FILLED SLOTS	0
REDUNDANT	No
UPS SIZE	WS

Physical

Input

NETWORK FREQUENCY	45…65 Hz
NUMBER OF INPUT CONNECTORS	1 hard wire 4-wire (3P + E) 1 hard wire 4-wire (3P + N)
INPUT VOLTAGE LIMITS	250…470 V adjustable 323…437 V 380 V 340…460 V 400 V 353…477 V 415 V
INPUTVOLT_OTHER	380 V 415 V
MAXIMUM INPUT CURRENT	145 A
SWITCHING CURRENT CAPACITY	315 A
MAX SHORT TIME WITHSTAND CURRENT	30 kA
INPUT HARMONIC DISTORTION	Less than 3 % for full load
INPUT PROTECTION TYPE	3-pole circuit breaker
INPUT VOLTAGE	400 V 3 phases
INRUSH CURRENT	200 A peak
LOAD POWER FACTOR	0.9
COS PHI	1

Output

RATED POWER IN W	90000 W
MAXIMUM CONFIGURABLE POWER IN W	90000 W
HARMONIC DISTORTION	Less than 2 >#/td###
OUTPUT FREQUENCY	50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains 50/60 Hz +/- 1 Hz unsynchronised
OUTPUTVOLT_OTHER	380 V 415 V
CREST FACTOR	3 : 1
UPS TYPE	Double conversion online
WAVE TYPE	Sine wave
OUTPUT CONNECTOR TYPE	Hard wire 4-wire (3P + E) 1
OUTPUT VOLTAGE TOLERANCE	+/- 2% static and 100% load step
OUTPUT HARMONIC DISTORTION	< 1% linear load and < 2.5% non-linear load
OUTPUT OVERLOAD OPERATION	10 minutes at 125% and 60 seconds at 150>#/td###
REQUIRED OUTPUT CURRENT PROTECTION	80 A
NEUTRAL OUTPUT CURRENT	145 A
BYPASS TYPE	Built-in maintenance bypass Built-in static bypass Optional external bypass
CURVE EQUATION	Efficiency
CURVE LOAD MAXIMUM	100 >#/td###
CURVE X-AXIS MAXIMUM	100 >#/td###
CURVE X-AXIS MINIMUM	0 >#/td###
CURVE X-AXIS TITLE	Load
CURVE X-AXIS UNITS	Percentage
CURVE Y-AXIS MAXIMUM	100 >#/td###
CURVE Y-AXIS MINIMUM	50 >#/td###
CURVE Y-AXIS TITLE	Efficiency
CURVE Y-AXIS UNITS	Percentage
EFFICIENCY	93.6 % (full load) 93.1 % (half load)
GRAPH DISPLAY	1
MAXIMUM OUTPUT CURRENT	480 A
OUTPUT VOLTAGE	400 V 3 phases
MAXIMUM CONFIGURABLE POWER IN VA	100000 VA
RATED POWER IN VA	100000 VA

Conformance

PRODUCT CERTIFICATIONS	CE TÜV VDE
STANDARDS	IEC 62040-1-2 EN/IEC 62040-2 EN/IEC 62040-3 ISO 9001

Environmental

AMBIENT AIR TEMPERATURE FOR OPERATION	0…40 °C
RELATIVE HUMIDITY	0…95 >#/td###
OPERATING ALTITUDE	0…3333 ft
AMBIENT AIR TEMPERATURE FOR STORAGE	-20…45 °C
STORAGE RELATIVE HUMIDITY	0…95 >#/td###
STORAGE ALTITUDE	0.00…12192.00 m
ACOUSTIC LEVEL	61.4 dBA
HEAT DISSIPATION	23549 Btu/h
SHOW NOTE OP TEMPERATURE	No
IP DEGREE OF PROTECTION	IP20

Batteries & Runtime

BATTERY TYPE	External battery system
NUMBER OF BATTERY FILLED SLOTS	0
NUMBER OF BATTERY FREE SLOTS	0
BATTERY RECHARGE TIME	10 h
ADDITIONAL INFORMATION	Battery runtimes are estimates only. Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
LIQUID VALUE	0
BATTERY VOLTAGE	432 V
BATTERY CURVE	B
BATTERY POWER IN VAH	0 VAh runtime
BATTERY LIFE	8…10 year(s)
BATTERY OPTION	G55TBATL7A 1 28000 VAh G55TBATL10B 1 38000 VAh G55TBATL7L10E 1 77500 VAh
BATTERY GRAPH COMMENTS	Estimated runtimes based on battery vendor data, at typical environmental conditions, with no electrical input and balanced PF = 0.8 output.
EXTENDED RUNTIME	0
