Canon i-SENSYS MF752Cdw A4 Colour Multifunction Laserjet Printer

Specification

Machine Type
Colour Laser All-In-One
Available Functions
Print, Copy and Scan

Print Specifications

Print Speed
33ppm
Printing Method
Colour laser beam printing
Print Resolution
Up to 1200 x 1200 dpi
Warm-up Time
Approx. 14 seconds or less from power on
First-Print-Out Time
Colour approx.: 7.1 seconds or less
Mono approx.: 7.1 seconds or less
Printer Languages
UFRII, PCL 5c1, PCL6
Fonts
45 PCL fonts
Print Margins
5 mm-top, bottom, left and right
10 mm-top, bottom, left and right (Envelope)
Toner Saver Mode
Yes
Advanced Printing Features
Encrypted Secure Print
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Print from Cloud (Dropbox, GoogleDrive, OneDrive)2 (PDF/JPEG)
Microsoft Universal Print support
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Copy Specifications

Copy Speed
Single sided (A4): Up to 33 ppm
Double sided (A4): Up to 29 ipm
First-Copy-Out Time
ADF (A4): Colour Approx. 8.8 seconds or less
Mono Approx. 7.6 seconds or less
Platen (A4):
Colour Approx. 9.4 seconds or less
Mono Approx. 8.3 seconds or less
Copy Resolution
Up to 600 x 600 dpi
Copy Modes
Text/Photo/Map (Default),Text/Photo/Map (quality), Printed Image, Text
Double Sided Copying
2-sided to 2-sided (Automatic)
Multiple Copies
Up to 999 copies
Reduction / Enlargement
25-400% in 1% increments
Other Features
Frame Erase, Collate, 2 on 1, 4 on 1, ID card copy, Reserved copy

Scan Specifications

Standard Type
Colour
Scan Resolution
Optical: Up to 600 x 600 dpi
Enhanced: Up to 9600 x 9600 dpi
Scan Speed
Single sided mono: 50ipm (300x300dpi)
Single sided colour: 40ipm (300x300dpi)
Double sided mono: 100ipm (300x300dpi)
Double sided colour: 80ipm (300x300dpi)
Single sided mono: 40ipm (300x600dpi)
Single sided colour: 20ipm (300x600dpi)
Double sided mono: 80ipm (300x600dpi)
Double sided colour: 40ipm (300x600dpi)
Colour Scanning Depth
24 bit/24 bit (input/output)
Greyscales
256 levels
Compatibility
TWAIN, WIA, ICA
Maximum Scan Width
216mm
Scan to E-mail
TIFF/JPEG/PDF/Compact PDF/Searchable PDF
Scan to PC
TIFF/JPEG/PDF/Compact PDF/Searchable PDF
Scan to USB Memory Key
TIFF/JPEG/PDF/Compact PDF/Searchable PDF
Scan to FTP
TIFF/JPEG/PDF/Compact PDF/Searchable PDF
Scan to Cloud
TIFF/JPEG/PDF/PNG3

Media Handling

Scanner Type
Platen, 2-sided ADF (single pass)
Paper Input (Standard)
250-sheet cassette
50-sheet multi-purpose tray
50-sheet ADF
Paper Input (Option)
550-sheet cassette
Maximum Paper Input Capacity
850-sheet cassette
Paper Output
150-sheet
Media Types
Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Label, Post card, Envelope
Media Sizes
Cassette (Standard):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 98 x 148 mm Max. 216.0 x 356.0 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.0 x 127 mm Max. 216.0 x 356.0 mm.

Cassette (Optional):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Custom sizes: Min. 100 x 148 mm Max. 216.0 x 356.0 mm.

ADF:
A4, A5, A6, B5, Legal, Letter, Statement, Custom sizes: Min. 48 x 85.0 mm Max 216.0 x 355.6 mm
Media Weights
Cassette (standard and optional): 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
Multi-purpose tray: 60 to 176 g/m² (Up to 200 g/m² with Coated paper)
ADF: 50 to 105 g/m²
Double Sided Printing
Automatic
Cassette:
A4, A5, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
Custom size - Min. 148 x 148 mm Max. 216 x 356 mm
60 to 200 g/m²

Interface & Software

Interface Type
USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
Operating System Compatibility
Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
Mac OS X version 10.12 & up
Linux4
Network Protocol
Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Scan:
Push Scan: File: FTP (TCP/IP), SMB3.0 (TCP/IP)
E-mail/I-Fax: SMTP (send), POP3 (receive)
Pull Scan: TCP/IP

Management:
SNMPv1, SNMPv3 (IPv4,IPv6)

Security:
TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP(AES), WPA2-EAP(AES)
Access Point Mode:
WPA2-PSK(AES)
Software and Printer Management
MF Scan Utility,
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
Application Library

General Features

Recommended Monthly Print Volume
750 - 4,000 pages per month
Duty Cycle
Max. 50,000 pages per month5
Processor Speed
1200MHz x 2
Memory
1GB
Control Panel
12.7 cm LCD Colour Touch Screen

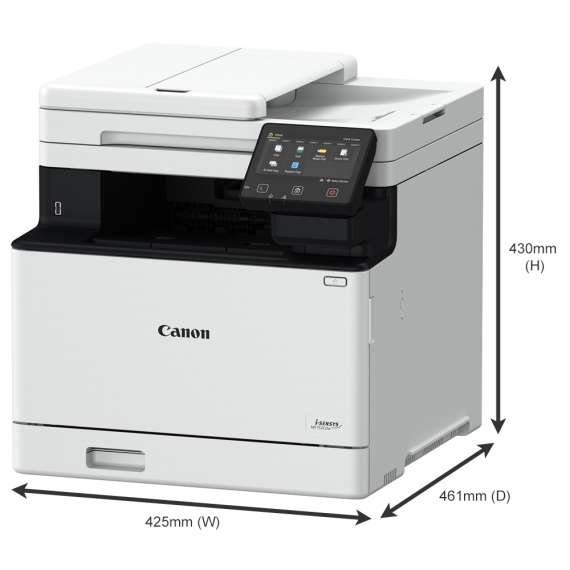

Dimensions with Trays (W x D x H)
425 mm x 461 mm x 430 mm
Installation Space (W x D x H)
625 mm x 1,117 mm x 991 mm
Weight
Approx. 23.30 Kg
Operating Environment
Temperature: 10 to 30ºC (50 to 86ºF)
Humidity: 20 to 80% RH (no condensation)
Power Source
220-240V(±10%) 50/60Hz (±2Hz)
Power Consumption
Maximum: Approx. 1,380 W
Active printing: Approx. 700W
Standby: Approx. 24.0 W
Sleep mode: Approx. 1.0 W
Typical Electricity Consumption (TEC): 0.30 kWh/week5 (230V)

Noise Levels
Sound Pressure6:
Active: Simplex 51dB / Duplex 51dB (BW), 50dB (CL)
Standby: 29 dB

Sound Power7:
Active: 65dB or less
Standby: 41dB or less

Consumables

Cartridges
Cartridge 069 Black (2,100 pages*)**
Cartridge 069H Black (7,600 pages*)**
Cartridge 069 Cyan (1,900 pages*)**
Cartridge 069H Cyan (5,500 pages*)**
Cartridge 069 Magenta (1,900 pages*)**
Cartridge 069H Magenta (5,500 pages*)**
Cartridge 069 Yellow (1,900 pages*)**
Cartridge 069H Yellow (5,500 pages*)**

*Based on ISO/IEC 19798
**Printer ships with Black: 2,100 pages, C/M/Y: 1,100 pages starter cartridges
