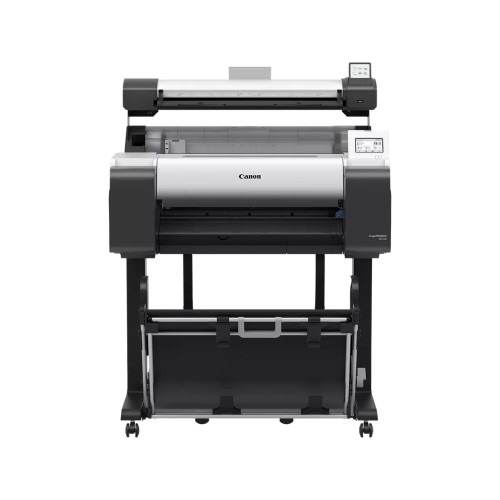

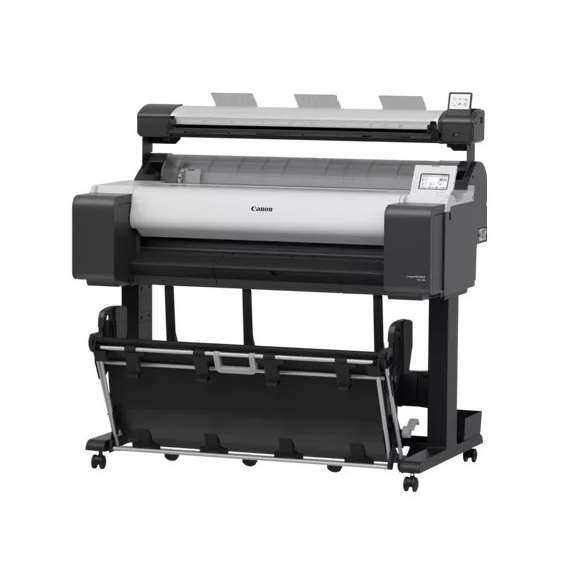

Canon imagePROGRAF TM-255 Large Format Printer

CODE :

TM-255

Write a review

USD $1,992.06

Request for Quotation

BrandCanon ConditionNew DuplexNo Print TechnologyInkjet Printer FunctionsPrint Only Printer PortsUSB, Ethernet, Wi-Fi Printout colorColoured Warranty IssuerManufacturer

Canon imagePROGRAF TM-255 Large Format Printer

Description

Printer

Borderless Printing	[Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 300mm, 500mm, 600mm [Recommended]515mm(JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
Print Resolution	2400 x 1200 dpi
Print Technology	Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Color Type	Color
Minimum Ink Droplet Size	5 pL (Black, Cyan, Magenta, Matte Black, Yellow)
Number of Nozzles	15,360 Nozzles (Total) 2560 Nozzles (Per Other Color) 5120 Nozzles (Matte Black)
Printer Language	HP-GL/2 HP-RTL SG Raster CALS G4 (submission via FTP only) JPEG (Ver. JFIF 1.02) PDF (Ver. 1.7)
Printer Type	5 Colours 24"

Environmental

Operating Temperature	59 to 86°F / 15 to 30°C
Operating Humidity	10 to 80%

Power

Batteries	None
Power Consumption	Default setting for the time to enter the Sleep mode: Approx. 5 minutes Operation: 64W or less Power off: 0.1W or less Sleep mode: 2.2W or less
Power Source	AC 100-240V (50-60Hz)

Physical

Dimensions	978 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed) 978 x 885 x 1060mm (Operation panel is not tilted up/Basket Opened)
Weight	54.5 kg (including Roll Holder Set, excluding ink and print head)

Packaging Information

Box Dimensions (LxWxH)	1152 x 913 x 946 mm
Package Weight	96kg

Printer Media Handling

Media Roll Diameter	150mm
Media Sizes	Media Width: Roll paper: 203.2 – 610mm, Cut sheet: 203.2 – 610mm Minimum Printable Length: Roll paper: 203.2mm, Cut sheet: 279.4mm
Media Thickness	Roll/Cut : 0.07mm – 0.8mm
Paper Handling	Cut Sheet: 1 sheet Roll Paper: One roll

Printer Cartridge

Ink Type	Pigment inks : 5 colours MBK/BK/C/M/Y
Ink Color	1 x Black 1 x Cyan 1 x Magenta 1 x Matte Black 1 x Yellow

Interface	Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T) USB A Port: USB Memory (Direct Print) USB B Port: Hi-Speed USB Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Acoustic Noise Levels	Operation: 6.2 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard) Operation: Approx. 41dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard) Standby: 35 dB(A) or less
