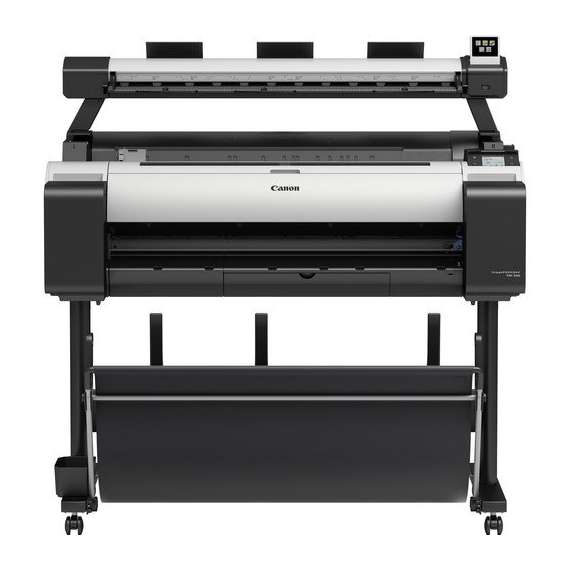

Canon imagePROGRAF TM-300 36" Large-Format Inkjet Printer‎

Overview

The imagePROGRAF TM-300 is 60% quieter and can unobtrusively fit into any working environment. Even on plain paper, the full pigment Lucia TD ink system produces exceptional print quality, and continuous printing boosts output productivity.

Full pigment
High precision printing for CAD and posters from Canon’s unique 5-colour Lucia TD ink system.

Print faster
Boost productivity by printing faster, thanks to a 6-channel optimised 1.07-inch print head.

Quiet operation
Smoother cutting, reduced vibrations and dampened fans have decreased the running noise by 60%.

Compact design
Small footprint and front usability allows the imagePROGRAF TM-305 to fit flat to the wall.

Software suite
Direct Print & Share, PosterArtist Lite and Free Layout Plus support CAD and poster production.

Specification

Printer Type

5 Colour 36"/914mm
Print Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution

2,400 x 1,200 dpi
Number of Nozzles

15,360 nozzles (MBK 5,120 nozzles, Other Colours 2,560 nozzles each)
Line Accuracy

±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
Nozzle Pitch

1,200 dpi (2 lines)
Ink Droplet Size

minimum 5 pl per colour
Ink Capacity

Sales Ink: 130ml/300ml
Bundled Starter Ink: 130ml (Matte Black)/90ml (Black, Cyan, Magenta, Yellow)
Ink Type

Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow
OS Compatability

Microsoft Windows 32 Bit: Windows 7, 8.1, 10,
64 Bit: Windows 7, 8.1, 10, Server 2008R2, Server 2012/2012R2, Server 2016
Apple Macintosh: OS X 10.10.5 ~ OS X 10.11, macOS 10.13
Printer Languages

SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02)
Standard Interfaces

USB B Port: Built-in Hi-Speed USB
Ethernet: IEEE 802.3 10-base-T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
Memory
Standard Memory

2 GB
Hard Drive

N/A
Printing Speed
CAD Drawing

Plain Paper (A0 page size)

0:40 (Fast Economy Mode)
0:46 (Fast)
1:14 (Standard)
Poster

Plain Paper (A0 page size)

0:44 (Fast)
1:18 (Standard)
Coated Paper (A0 page size)

1:41 (Fast)
2:36 (Standard)
Media Handling
Media Feed and Output

Roll paper: One Roll, Upper-loading, Front Output
Cut sheet: Upper-loading, Front Output (Manual feed using media locking lever)
Media Width

Roll paper: 203.2 -917 mm
Cut sheet: 203.2 - 917 mm
Media Thickness

Roll/Cut: 0.07 - 0.8 mm
Minimum Printable Length

Roll paper: 203.2 mm
Cut sheet: 279.4 mm
Maximum Printable Length

Roll paper: 18 m (Varies according to the OS and application)
Cut sheet: 1.6 m
Maximum Media Roll Diameter

150 mm
Media Core Size

Internal diameter of roll core: 2"/3"
Margins Recommended area

Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area

Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet for Apple AirPrint Only: Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm
Cut sheet for thers: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity

Manually switchable by user
Borderless Printing Width (Roll Only)

515mm(JIS B2), 728mm(BIS B1), 594mm(ISO A1), 841mm(ISO A0),10",14",17",24",36"
[Printable]257mm(JIS B4),297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2),8", 12", 16", 20", 30", 300mm, 500mm, 600mm, 800mm
Maximum number of delivered prints

Stand/Basket - Standard position: 1 sheet
Stand/Basket - Flat position: 20 sheets on A1, A2 landscape (excludes strong curled condition)
Dimensions and Weight
Physical Dimensions and Weight

Main Unit, Stand and Basket
1289 x 887 x 1060 mm (Basket Open)
1289 x 757 x 1060 mm (Basket Closed)
60 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight

Printer (Main unit with stand (SD-32) and pallet): 1462 x 913 x 961 mm, 105 kg
Power and Operating Requirements
Power Supply

AC 100-240V (50-60Hz)
Power Consumption

Operation: 69 W or less
Sleep mode: 3.6 W or less　
Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
Power off: 0.3 W or less
Operating Environment

Temperature: 15~30℃,
Humidity: 10~80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)

Operation: 44 dB (A) (Plain paper, line drawing, standard mode)
Standby: 35 dB (A) or less
Operation: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO 7779 standard)
Regulations

Europe: CE mark, Russia: EAC
Certificates

TUV, CB


Software Included

imagePROGRAF TM-Series Printer Driver, Print Plug-In for Office, Quick Utility Toolbox and PosterArtist Lite
Other software available as Download from Web.
Options
Optional Items
2/3" Roll Holder: RH2-35

Consumables

User Replaceable Items
Ink Tank: PFI-120 (130ml), PFI-320 (300ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
