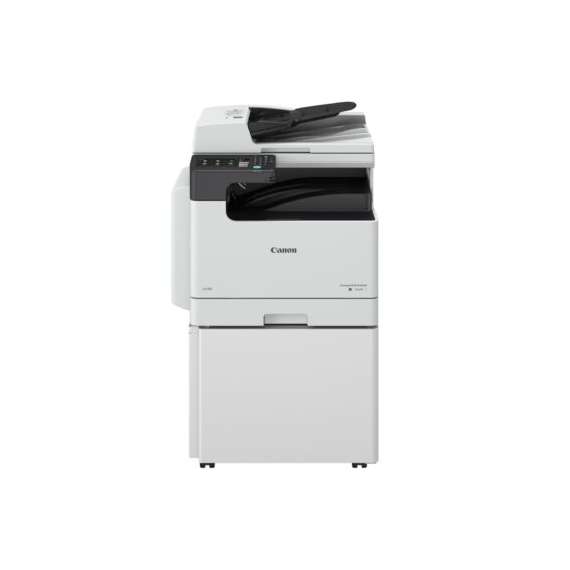

Canon imageRUNNER C2425i MFP Monochrome A3 Laser Printer

Machine type
A3 Monochrome Laser Multifunctional

Core functions
Print, Copy, Scan, Send and Optional Fax
Processor
1GHz Dual Core Processor
Control Panel
17.8cm (7 inch) TFT LCD WVGA Colour Touch panel
Memory
Standard: 2.0GB RAM
Storage
Standard: 64GB eMMC (available space: 30GB)

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

OTHERS
Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1
Paper Supply Capacity (A4, 80 gsm)

Standard: 330 sheets
Maximum: 580 sheets (with Cassette Feeding Module-AK1)
Paper Output Capacity (A4, 80 gsm)

Max: 250 sheets
Supported media types

Multi-purpose Tray:
Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Label, Pre-punched, Envelope

Paper Cassette:
Plain, Recycled, Colour, Pre-punched
Supported media sizes

Multi-purpose tray:

Standard size: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom Size/Free Size: Min. 95.0 x 139.7 mm up to 297.0 x 431.8 mm

Paper Cassette:

Standard size: A3, A4, A4R, A5R, B4, B5, B5R
Supported media weights

Multi-purpose tray: 60 to 157 gsm
Paper Cassettes: 64 to 90 gsm
Duplex: 60 to 90 gsm
Warm-up Time (With Quick Start Up Mode ON)

4 Seconds or less*

* Time from device power-on to when key operations can be performed on the touch panel display.

From Sleep Mode: 10 seconds or less

From Power On: 12 seconds or less *

* Time from device power-on, until copy ready (not print reservation)
Dimensions (W x D x H)

iR 2425: 627 x 665 x 516 mm
iR 2425i: 627 x 692 x 616 mm
Installation Space (W x D)

1,065 x 1,285 mm
Weight

iR 2425i: Approx. 39.2 kg including toner
iR 2425: Approx. 34.2 kg including toner

Print Specifications

Print Speed (BW)

Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
Print Resolution (dpi)

600 x 600
Page description languages

Standard: UFR II, PCL6,
Optional: Adobe®PostScript®3TM
Direct Print

Supported file types:
RUI: PDF, EPS, TIFF/JPEG, XPS
USB Memory: PDF, TIFF/JPEG, XPS
Network Place: PDF, TIFF/JPEG, XPS
Printing from mobile and cloud

AirPrint, Mopria, Google Cloud Print, Canon
PRINT Business and uniFLOW Online
A range of software solutions is available to provide
printing from mobile devices and cloud-based services
depending on your requirements. Please contact your
sales representative for further information.
Fonts

PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*1 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*2
PS fonts: 136 Roman

*1 Requires optional PCL International Font Set-A1
*2 Requires optional Barcode Printing Kit-D1
Print Features

Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing,
Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date,
Scheduled Printing, Printing Using a Virtual Printer
Operating System

UFRII: Windows® 7/8.1/10/Server 2008 /Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)

PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019

PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)

PPD: Windows® 7/8.1/10, MAC OS X (10.10 or later)

Windows®/MAC OS: As of March, 2020

Copy Specifications

Copy Speed (BW)

Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
First-Copy-Out Time (A4) (BW)

Approx. 7.4 seconds or less
Copy resolution (dpi)

600 × 600
Multiple Copies

Up to 9,999 copies
Copy Density

Automatic or Manual (9 Levels)
Magnification

25% - 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 70%, 100%, 141%, 200%, 400%
Copy Features

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Gutter, Copy ID Card, Free Size Original, Reserved copy, Copy Sample

Scan Specifications

Type

iR 2425 : Standard Platen Cover
iR 2425i: Standard Duplexing Automatic Document Feeder [2-sided to 2-sided]
Document Feeder Paper Capacity (80 gsm)

50 Sheets
Acceptable Originals and weights

Platen: Sheet, Book

Document Feeder media weight :
1-sided scanning: 52 to 105 gsm (BW/CL)
2-sided scanning: 52 to 105 gsm (BW/CL)

Only 1-sheet feeding is supported in 37-52 and
105-128 gsm.
Supported media sizes

Platen: max. scanning size: 297.0 x 432.0 mm

Document Feeder media size:
A3, A4, A4R, A5, A5R, B4, B5, B5R
Custom size: 139.7 x 148.5 mm to 297.0 x 432.0 mm
Scan Speed (ipm: BW/CL, A4)

DADF：
1-sided Scanning: 35/25 (300 dpi, send), 25/13 (600 dpi, copy)
2-sided Scanning: 12/8 (300 dpi, send), 8/4 (600 dpi, copy)
Scan Resolution (dpi)

Copy: up to 600 x 600
Send: (Push, BW) up to 600 x 600, (Pull, BW) up to 600 x 600
(Push, CL) up to 300 x 300, (Pull, CL) up to 300 x 300
Fax: up to 600 x 600
Pull Scan Specifications

Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 7/8.1/10
Windows® Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
Scan Method

Push scan, Pull scan, Scan to Network, Scan to memory media (USB Memory Key), Scan to Mobile Devices, Scan to cloud-based services (uniFLOW)

Send Specifications

Destination

Standard: E-mail/Internet FAX (SMTP), SMB 3.0, FTP WebDAV
Optional: Super G3 FAX
Address book

LDAP (2,000)/Local (1,600)/Speed dial (200)
Send resolution (dpi)

Push: 100 x 100, 150 x 150, 200 x 100 (Standard), 200 x 200 (Fine), 200 x 400*(Super Fine), 300 x 300, 400 x400*(Ultra Fine), 600 x 600*

Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 x 400*, 600 x 600*

*Colour mode is black and white only
Communication protocol

File: FTP (TCP/IP), SMB (TCP/IP), WebDAV
Email/iFax: SMTP (send), POP3 (receive)
File Format

Standard：TIFF (MMR), JPEG *, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word)
Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)

*Single page only
Universal Send Features

Original Type Selection, Two-sided Original, Different-size Originals, Density Adjustment, Sharpness,
Erase Frame, Job Build, Sender's Name (TTI), Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation

Fax Specifications

Maximum Number of Connection Lines

1
Modem Speed

Super G3: 33.6 kbps
G3: 14.4 kbps
Compression Method

MH, MR, MMR, JBIG
Resolution (dpi)

400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending/Recording Size

Sending: A3, A4, A4R, A5*2, A5R*2, B4, B5*1, B5R*2
Receiving: A3, A4, A4R, A5R, B4, B5, B5R

*1 Sent as B4
*2 Sent as A4
FAX memory

Up to 30,000 pages
Speed dials

Max. 200
Group dials/destinations

Max. 199 dials
Sequential broadcast

Max. 256 addresses
Memory backup

Yes
Fax Features

Sender's Name (TTI), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, TX Reservation, Interrupt Transmission, Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox

Store Specifications

Memory Media

Standard: USB Memory

Security Specifications

Authentication and Access Control

User Authentication (Picture Login, Picture and PIN Login, Function Level Login, Mobile Login),
Deparment ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express* (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login)

*No charge for this solution; however activation is required.

Access Management System (Access Control)
Document Security

Standard:
Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*1)
Recieve Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically)
Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*2)
Send Data Security (Confirming FAX number, Allow/Restrict Fax Driver Transmissions, S/MIME Support)

*1 Requires optional uniFLOW Online / uniFLOW
*2 Requires optional Universal Send Digital User Signature Kit-C1
Network Security

TLS, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception)
Device Security

Protecting MFP Software Integrity, Verify System at Start-up
Device Management and Auditing

Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting

Environmental Specifications

Operating Environment

Temperature: 10 to 30 ºC (50 to 86 ºF)
Humidity: 20 to 80 % RH (Relative Humidity)
Power Source

250 V, 50/60 Hz, 10 Amp
Power Consumption

Maximum: Approx. 1,500 W

Standby: Approx. 22.1 W*1

Sleep mode: Approx. 1 W*2 /Approx. 2 W*3

*1 Reference value: measured one unit
*2 Wireless LAN power serve mode OFF
*3 Wireless LAN power serve mode ON
*2/*3 Sleep mode may not possible in all circumstances due to certain settings

Typical Electricity Consumption (TEC)* :
iR 2425 : 0.31 kWh
iR 2425i: 0.30 kWh

*As per US ENERGY STAR version 3.0

Noise levels (BW)

Sound Power Level (LWA,m)
(1-sided/2-sided)
Active: 6.6* B, kv 0.3* B

Sound Pressure Level (LpAm) (Reference)
Bystander's position: (1-sided)
Active: 54 dB*

* Reference value: measured only one unit with ISO7779, described with ISO9296:2017
Standards

Blue Angel

Consumables

Toner Cartridges

C-EXV 60 Black Toner
Toner yield (estimated yield @ 6% coverage)

Black: 10,200 impressions (A4)

Software and Printer management

Tracking and reporting

uniFLOW Online Express*

* No charge for this solution; however activation is required.
Remote management tools

iW Management Console
eMaintenance
Content Delivery System
Scanning software

ScanGear
Optimisation tools

Canon Driver Configuration Tool
Document Publishing

IW DESKTOP

Paper Supply options

Cassette Feeding Module-AK1

Paper Capacity: 250 sheets x 1 (80 gsm)
Paper Type: Plain, Recycled, Colour, Pre-punched
Paper Size: A3, A4, A4R, A5, B4, B5 ,B5R
Paper Weight: 64 to 90 gsm
Power Supply: From the Main Unit
Dimensions (W x D x H): 581 x 575 x 92 mm
Weight: Approx. 5.8 kg

Security Options

Data Security

Picture Login-A1

System and Controller options

Print Accessories

PCL International Font Set-A1
PS Printer Kit-CM1
Send Options

Universal Send Trace & Smooth PDF Kit-A1
Universal Send Digital User Signature Kit-C1
Barcode Printing

Copy Control Interface Kit-D1
Fax Accessories

Super G3 FAX Board-BE1
Remote Fax Kit-A1
