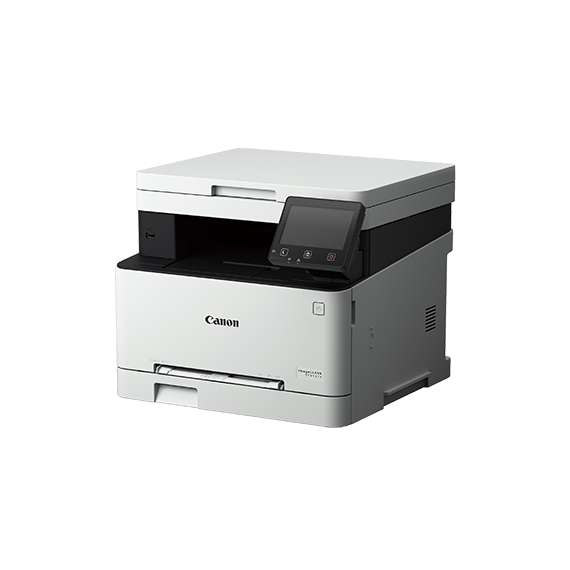

Canon MF641cw image Class 3 in 1 Colour Multifunction Printer

Overview

5-inch Colour Touchscreen LCD Display
The MF641Cw features an intuitive 5-inch colour touch screen LCD panel. The operation panel has a vari-angle mechanism which allows greater viewing flexibility.

Application Library
The Application Library helps you work smarter and more efficiently. You can store and print frequently-used forms directly from the device, or distribute your documents electronically to pre-set destinations with just a tap of the button.

Mobile Printing Solutions
With Canon’s latest mobile business solution, you can print and scan documents, photos, web pages and emails all with just one app.

Wireless Freedom
Do away with unsightly cables as the MF641Cw has the option to share the printer wirelessly within your network. The device also has built in Access Point capability, enabling easy connection to mobile devices without a router.

Direct USB Printing
Enjoy the convenience of direct printing from and scanning to USB memory devices, in various file formats such as PDF, JPEG and TIFF.

Minimal Maintenance
Enjoy fuss-free and low maintenance operation with Canon All-in-One toner cartridge design. Optional high capacity cartridge 054H is available for customer with high volume printing, reducing the frequency of replacing cartridge even further.

Specification

Printing Method Colour:P Laser Beam Printing
Print Speed
A4 18 / 18 ppm (Mono / Colour)
Letter 18 / 18 ppm (Mono / Colour)
2-Sided N/A
Print Resolution 600 x 600 dpi
Print Quality with Image Refinement Technology 1,200 × 1,200 dpi (eq.)
Warm up Time (From Power On) 13 sec or less
First Print Out Time (FPOT)
A4 Approx. 10.4 / 10.5 sec (Mono / Colour)
Letter Approx 10.3 / 10.3 sec (Mono / Colour)
Recovery Time (From Sleep Mode) 6.1 sec or less
Print Language UFR II
Auto Duplex Print N/A
Available Paper Size for Auto Duplex Print N/A
Print Margins 5mm - top, bottom, left and right (Envelope: 10mm)
Print Features Poster, Booklet, Watermark, Page Composer, Toner Saver
Supported File Format for USB Direct Print Supported File Format: JPEG, TIFF, PDF

Copy

Copy Speed A4
A4 18 / 18 ppm (Mono / Colour)
Letter 18 / 18 ppm (Mono / Colour)
Copy Resolution 600 x 600dpi
First Copy Out Time (FCOT)
A4 Approx. 11.4 / 13.4 sec (Mono / Colour)
Letter Approx. 11.2 / 13.1 sec (Mono / Colour)
Maximum Number of Copies Up to 999 copies
Reduce/Enlargement 25 - 400% in 1% increments
Copy Features Frame Erase, Collate, 2 on 1, 4 on 1, ID Card Copy, Passport Copy

Scan

Scan Resolution
Optical Platen glass: up to 600 x 600dpi
Driver Enhanced Up to 9,600 x 9,600 dpi
Scan Type Colour Contact Image Sensor
Maximum Scan Size
Platen Glass Up to 216.0 x 297mm
Feeder N/A
Scan Speed*1 N/A
Colour Depth 24-bit
Pull Scan Yes, USB and Network
Push Scan (Scan To PC) with MF Scan Utility Yes, USB and Network
Scan To USB (via USB Host 2.0) Yes
Scan To Cloud MF Scan Utility
Scan Driver Compatibility TWAIN, WIA

Send

SEND Method SMB, Email, FTP
Colour Mode Full Color, Grayscale, Monochrome
Scan Resolution 300 x 600pi
File Format JPEG, TIFF, PDF, Compact PDF, PDF (OCR)

Paper Handling

Auto Document Feeder (ADF) N/A
Available Paper Size for DADF N/A
Paper Input
(based on 80g/m2)
Standard Cassette 250 sheets
Multi-Purpose Tray 1 sheet
Optional Paper Feeder N/A
Maximum Paper Input Capacity 251 sheets
Paper Output 100 sheets
Paper Sizes
Cassette A4, B5, A5, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal
Custom (Min. 76.2 x 127.0mm to Max. 216.0 x 355.6mm)
Multi-Purpose Tray A4, B5, A5, Letter, Legal, Statement, Executive, Government Letter, Government Legal, Foolscap, Indian Legal, Index Card
Envelope: COM10, Monarch, C5, DL
Custom (Min. 76.2 x 127.0mm to Max. 216.0 x 355.6mm)
Optional Paper Feeder N/A
Paper Types Plain, Thick, Coated, Recycled, Colour, Label, Postcard, Envelope
Paper Weight
ADF N/A
Cassette /
Optional Paper Feeder 60 to 200g/m2
Multi-Purpose Tray 60 to 200g/m2

Connectivity & Software

Standard Interfaces
Wired USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T
Wireless Wi-Fi 802.11b/g/n
(Infrastructure mode, WPS easy Setup, Direct Connection)
Near Field Communication (NFC) N/A
Network Protocol
Print LPD, RAW, WSD-Print (IPv4,IPv6)
Scan Email, SMB, WSD-Scan(IPv4, IPv6), FTP
TCP/IP Application Services Bonjour(mDNS), HTTP, HTTPS, POP before SMTP (IPv4,IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6)
Management SNMPv1, SNMPv3 (IPv4,IPv6)

Network Security

Wired IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC
Wireless WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
One-Push Wireless Configuration Wi-Fi Protected Setup (WPS)
Other Features Department ID, Secure Print, Application Library
Mobile Solution Canon PRINT Business, Canon Print Service, Google Cloud Print™, Apple® AirPrint®, Mopria® Print Service
Address Book LDAP
Compatible Operating Systems*3 Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008
Mac® OS X 10.9.5 & up*4, Linux*4
Software Included Printer driver, Scanner driver, MF Scan Utility, Toner Status

General

Device Memory 1 GB
LCD Display WVGA Colour LCD 5.0" Touch Screen Display
Dimensions (W x D x H) 451 x 460 x 360mm
Weight 16.8 kg
Power Consumption
Maximum 850W or less
Average (During Copy) Approx. 370W
Average (During Standby) Approx. 11W
Average (During Sleep) Approx. 0.8W (USB/ LAN / Wi-Fi)

Noise Levels

During Operation Sound Pressure Level: 49dB
Sound Power Level: 68.7dB
During Standby Sound Pressure Level: Inaudible
Sound Power Level: 43dB
Operating Environment
Temperature 10 - 30°C
Humidity 20% - 80% RH (no condensation)
Power Requirements AC 220-240 V (±10%), 50/60 Hz (±2Hz）

Toner Cartridge

Standard Cartridge 054 BK: 1,500 pages (bundled: 1,500 pages)
Cartridge 054 C/M/Y: 1,200 pages (bundled: 680 pages)
High Cartridge 054H BK: 3,100 pages
Cartridge 054H C/M/Y: 2,300 pages
Monthly Duty Cycle*7 30,000 pages
