Cisco Catalyst WS-2960X-48LPS-L 4-SFP Switch

Cisco Catalyst 2960X-48LPS-L Switch

Cisco Catalyst 2960X series 48 ports LAN Base stackable switch delivers Power over Ethernet Plus(PoE+) that supports up to 370W of PoE budget for 12 ports with 30W per port, or 24 ports with 15.4W per port or 48 ports with 7.4W per port.

Quick Specs

Product Details

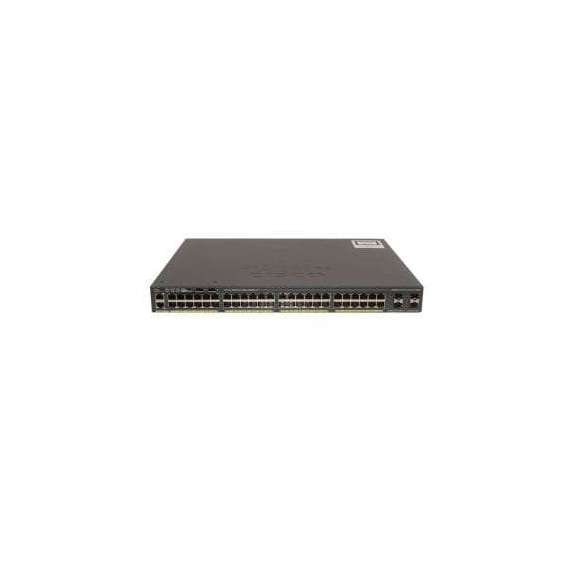

Figure 2 shows the front panel of the Cisco Catalyst 2960X-48LPS-L switch.

Note:

① Ethernet management port                        ⑥ SFP module ports

② Mode button                                                  ⑦ 48 x 10/100/1000 ports

③ Switch LEDs                                                 ⑧ CONSOLE LED

④ USB mini-Type B (console) port               ⑨ MGMT LED

⑤ USB Type A ports                                        ⑩ RJ-45 console port

·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.

·Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port.

Figure 3 shows the back panel of the Cisco Catalyst 2960X-48LPS-L switch.

Note:

①FlexStack-Plus module slot and cover             ②Fan Exhaust                  ③RPS Connector                   ④AC power connector

Figure 4 shows the stackable capacity.

This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
