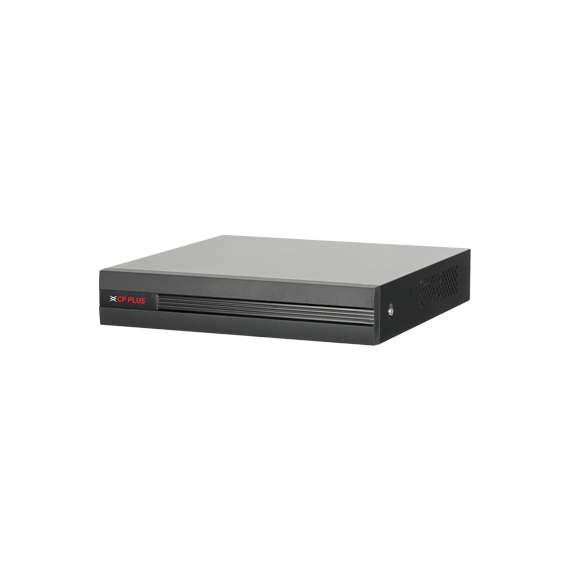

CP Plus CP-UVR-0401E1-CS 4 Channel 1080P Lite Cosmic HD DVR

CP Plus CP-UVR-0401E1-CS 4 Channel 1080P Lite Cosmic HD DVR

Specification

Processor : Embedded processor
Operating System : Embedded LINUX
IP Camera Input : 4+1: each channel up to 2MP
Two-way Talk: Reuse audio in/out, RCA
User Interface : GUI
Video Output: 1 HDMI, 1 VGA
Video Resolution : 1920×1080, 1280×1024, 1280×720
Video Recording: Main Stream: 1080N/720P/960H/D1/CIF (1~25/30fps), Sub stream CIF : (1~15fps)
Video Display Split : 1/4
Video Channel : 4 channel, BNC
Video Channel : 4 channel, BNC
Audio Output : 1 channel, RCA
Motion Detection : Supports
Video Loss : Supports
Smart Phone : iPhone, iPad, Android Phone
Trigger Events : Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode : Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode : Time/Date, MD & Exact search (accurate to second)
Backup Mode : USB Device/Network
Playback : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account : 128 users
Record Interval : 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet : RJ-45 port (100M)
Interface Ports : 1 HDMI, 1 VGA, 2 USB2.0
Protocols : HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant
Power Supply : DC12V/1.5A
Power Consumption : <10W(without HDD)
Working Temp : -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH
Dimension : 197mm×192mm×38mm
Weight: 0.55kg (without HDD)
