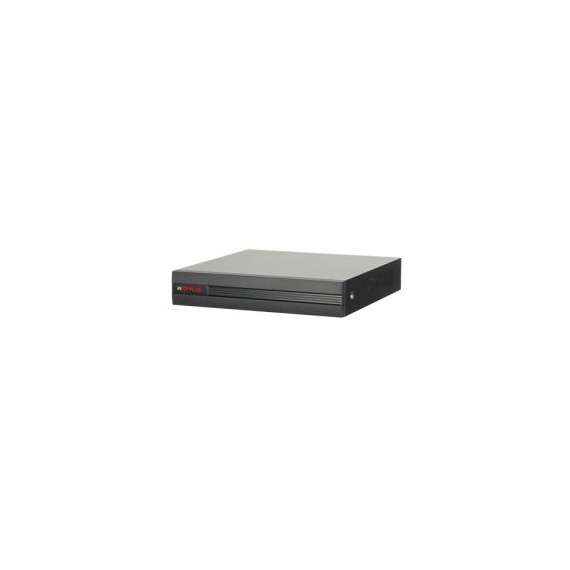

CP Plus CP-UVR-1601E1-HC 16 Channel 1080P Lite Cosmic HD DVR

CP Plus CP-UVR-1601E1-HC 16 Channel 1080P Lite Cosmic HD DVR

Specification

Processor : Embedded processor
Operating System : Embedded LINUX
IP Camera Input : 16+2, each channel up to 6MP
Two-way Talk : Reuse audio in/out, RCA
User Interface : GUI
Video Output : 1 HDMI, 1 VGA
Video Resolution : 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Video Recording : Main Stream:1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps), Sub stream: CIF/QCIF (1~7fps)
Video Display Split : 1/4/8/9/16
Video Channel : 16 channel, BNC
Audio Output : 1 channel, RCA
Audio Channel : 1 channel, RCA
Motion Detection : MD Zones: 396 (22 × 18)
Video Loss : Supports
Smart Phone : iPhone, iPad, Android Phone
Hard Disk : 1 SATA port, up to 6TB
Trigger Events : Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode : Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode : USB Device/Network
Playback : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account : 128 users
Record Interval : 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet : RJ-45 port (100M)
Interface Ports : 1 HDMI, 1 VGA, 2 USB2.0
Protocols : HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, ONVIF 16.12, CGI Conformant
Power Supply : DC12V/2A
Power Consumption : <10W(without HDD)
Working Temp : -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH
Dimension : 260mm x 236mm x 48mm
Weight : 0.80kg (without HDD)
