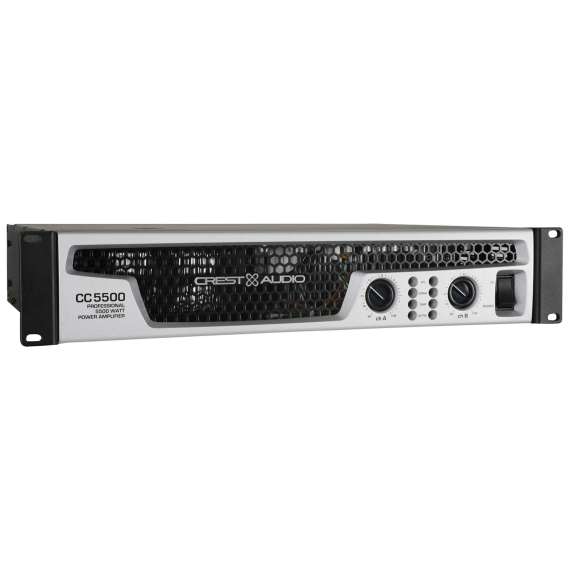

Peavey CC5500 Power Amplifier
Crest Audio has rolled out its new CC 5500 power amplifier. Based on the company’s Pro 200 Series technology, and using a linear power supply, the CC 500 delivers 5,500 watts of clean power into 4 ohms in Bridged Mono mode for main systems, monitors, and subwoofers, according to the company.
CC Series power amps deliver power with high sound quality and value for mobile DJs, club owners, and churches, among others. All CC Series amps are built with tunnel-cooled heat sinks, variable-speed DC fans, and protection circuitry for efficiency into difficult loads and power conditions. The CC 5500 also boasts 16 power devices per channel, plus a switched-trail class H output stage and triple-compound design to provide low distortion and excellent thermal stability.
| Power Rating | Bridge 4 Ω: 5,550 W @ 1 kHz, < 0.1% THD 2 Channels x 2 Ω: 2,750 W per channel @ 1 kHz, < 0.1% THD, both channels driven 2 Channels x 4 Ω: 1,800 W per channel @ 1 kHz, < 0.05% THD, both channels driven 2 Channels x 8 Ω: 1,150 per channel W @ 1 kHz, < 0.05% THD, both channels driven 1 Channel x 2 Ω: 3,600 W @ 1 kHz, < 0.1% THD 1 Channel x 4 Ω: 2,200 W @ 1 kHz, < 0.05% THD 1 Channel x 8 Ω: 1,280 W @ 1 kHz, < 0.05% THD |
| Damping Factor | > 400:1 @ 20 Hz to 1 kHz @ 8 Ω |
| Input Sensitivity | 4 Ω Rated power, 1 kHz: 2.18 V ± 3% 2 Ω Rated power, 1 kHz: 1.89 V ± 3% |
| Input Impedance | Balanced: 15 kΩ Unbalanced: 7.5 kΩ |
| Minimum Load Impedance | 2 Ω |
| Maximum RMS Voltage Swing | 115 V |
| Frequency Response | 10 Hz to 40 kHz, +0 dB, -3 dB @ 1 W |
| Power Bandwidth | 10 Hz to 30 kHz, +0 dB, -3 dB @ rated 4 Ω power |
| Total Harmonic Distortion (THD) | 2 Channel x 2 Ω: < 0.2% @ 1,900 W per channel, 20 Hz to 20 kHz 2 Channel x 4 Ω: < 0.1% @ 1,525 W per channel, 20 Hz to 20 kHz 2 Channel x 8 Ω: < 0.1% @ 1,000 W per channel, 20 Hz to 20 kHz |
| Input CMRR | > - 63 dB @ 1 kHz |
| Voltage Gain | x40, 32 dB x20, 26 dB |
| Crosstalk | > -67 dB @ 1 kHz @ 700 W @ 4 Ω |
| Hum and Noise | > -110 dB, "A" weighted referenced to rated power @ 8 Ω |
| Slew Rate | > 10 V/μs |
| Phase Response | + 5 to -15°, 20 Hz to 20 kHz |

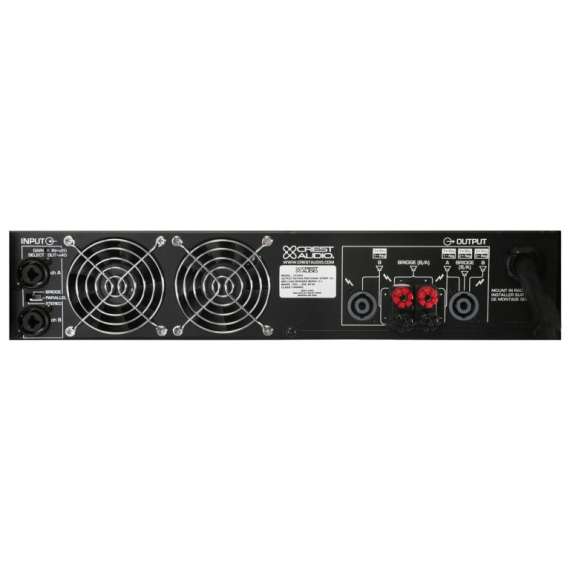

| Connectors | Rear Panel: 1 x 3-pin IEC, AC power input 1 x Speakon, channel A output 1 x Speakon, channel B output 2 x Speaker terminal, channel A output 2 x Speaker terminal, channel B output 1 x Combo 1/4" XLR, channel A input 1 x Combo 1/4" XLR, channel B input |

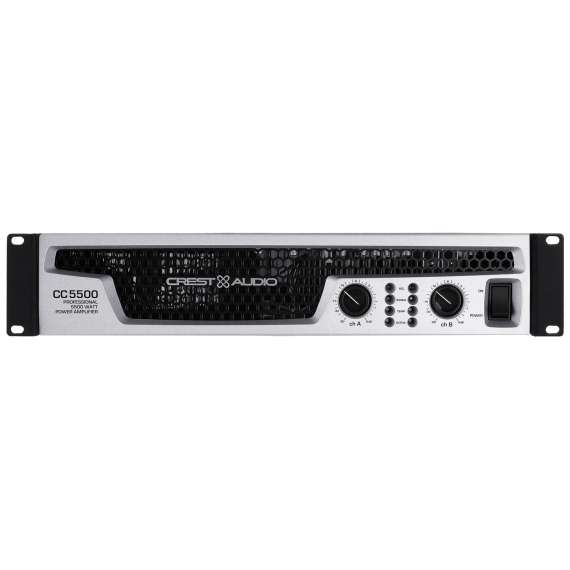

| Controls | Front Panel: 1 x Channel A rotary knob 1 x Channel B rotary knob 1 x AC Power On/Off switch Rear Panel: 1 x Mode selection switch (bridge / parallel / stereo) 1 x Gain select switch (Out: x40 (32 dB) / In: x20 (26 dB) |
| LED Indicators | Front Panel: 2 x Active 2 x Temperature 2 x Channel Signal 2 x ACL (Automatic Clip Limiting) |
| Cooling | 2 Temperature dependent variable speed 80 mm DC fans (rear panel) |
| Power Requirements | Current Draw @ 1/8: 2,640 W @ 2 Ω 1,740 W @ 4 Ω 1,140 W @ 8 Ω Current Draw @ 1/3: 5,920 W @ 2 Ω 4,150 W @ 4 Ω 2,690 W @ 8 Ω |
| Dimensions (H x W x L) | 3.5 x 19.0 x 14.9" (8.9 x 48.3 x 37.8 cm) +Ears and Connectors: 1.25" (3.2 cm) |
| Weight | 47.0 lb (21.3 kg) |
