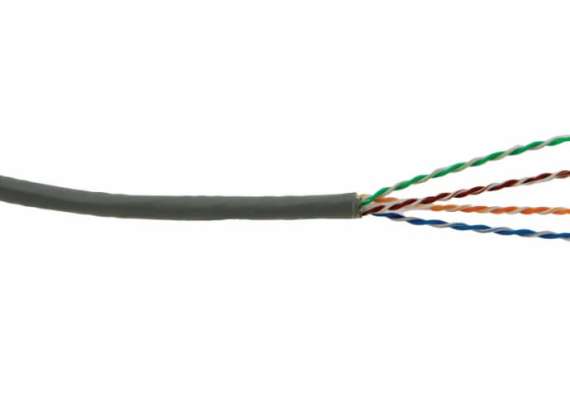

D-Link Cat6A 10G U/UTP 23AWG - 305m/Roll-Grey Colour PVC Solid Cable
D-Link Cat6A 10G UUTP 23AWG PVC Solid Cable - 305m/Roll - Grey Colour
Part Number: NCB-6AUGRYR-305
- 4 Pairs Unshielded Twisted Pair (U/UTP) Cable
- Conductor Metal: Bare Copper
- Color Code: Grey
- Jacket Material: FR PVC Corrugated Jacket
- Central Cross separator

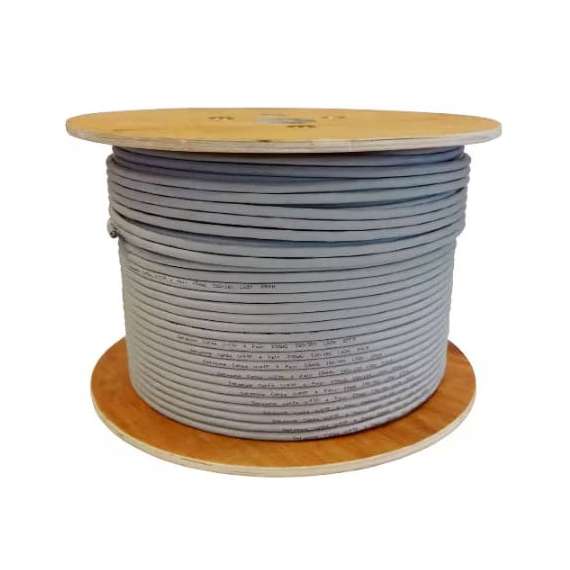

- Available in 305 mtr MDF spools in a box
- Electrical Properties
- Nominal Velocity of Propagation: 69>#/li###
- Characteristic Impedance: 100+15Ω
- Conductor Resistance: < 9.38Ω/100m
- Mutual Capacitance: < 5.6nF/100m
- Resistance Unbalance: 5% Max
- Capacitance Unbalance: 330pF/100m
- Delay Skew: < 45nS
Construction:
- Conductor: 23AWG Solid Bare Copper
- Insulation Material: HD-PE
- Cable Diameter: 6.5 mm nominal
