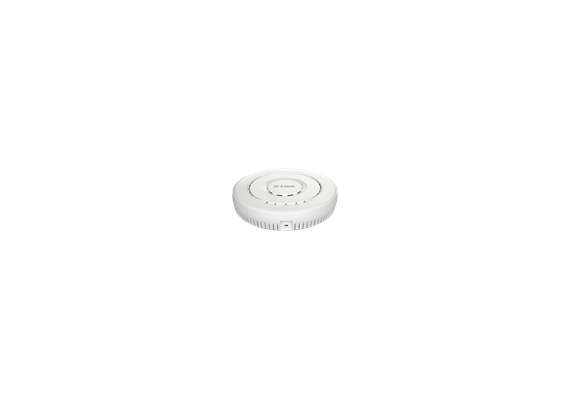

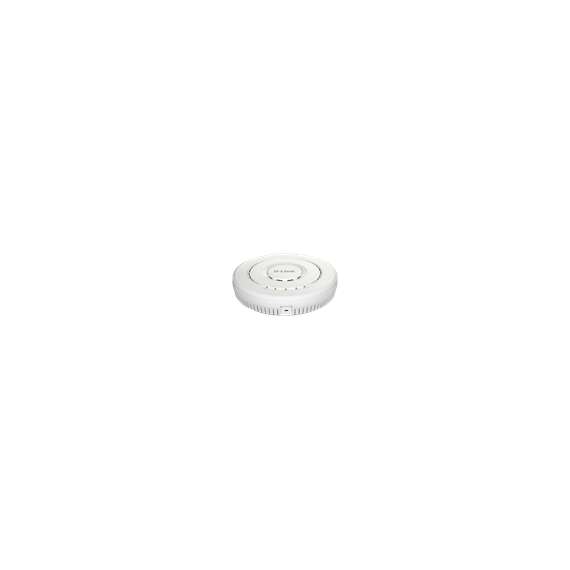

D-Link DWL-X8630AP/UUN Wireless AX Wi-Fi 6 3600 Mbps 4x4 MU-MIMO Dual Band Access point
D-Link DWL-X8630AP/UUN Wireless AX Wi-Fi 6 3600 Mbps 4x4 MU-MIMO Dual Band Access point
Part Number: DWL-X8630AP/UUN
-
802.11ax Wifi 6, Dual-Band, up to 3.6 Gbps 2
-
4x4 MU-MIMO internal omnidirectional antennas
-
Self-optimizing, self-healing, Fast Roaming with wireless controller
-
Link Aggregation with 2.5G and Gigabit ports
-
Limited Lifetime Warranty with registration
Specifications.
|
Type
|
Unified access point |
|---|---|
|
Wi-Fi standards
|
802.11ax Wi-Fi 6 |
|
Frequency mode
|
Simultaneous dual-band |
|
Wireless speed
|
1147 Mbps 2.4 GHz 2402 Mbps 5 GHz |
|
Types of antennas
|
Integrated omnidirectional antennas |
|
Antenna sheath
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
|
PoE supported
|
Yes |
|
Wired interface
|
1 x 2.5GBASE-T LAN 1 x Gigabit Ethernet LAN |
|
Console port
|
|
|
Inside Outside
|
Interior |
|
Type of housing
|
Plastic |
|
Plenum rated (UL-2043)
|
|
|
Wireless modes
|
Access Point (AP) |
|
Advanced features
|
MU-MIMO SmartBeam |
|
Maximum number of SSIDs
|
16 per radio |
|
Auto channel selection
|
|
|
WMM-PS / 802.11e (U-APSD)
|
|
|
Wi-Fi scheduler
|
|
|
AP traffic load balance
|
|
|
L2 roaming
|
|
|
WPA / WPA2-Personal / Enterprise
|
|
|
WPA3-Personal / Enterprise
|
|
|
TKIP / AES encryption
|
|
|
WLAN partition
|
|
|
SSID broadcast disable
|
|
|
Rogue AP detection
|
|
|
Isolation station
|
|
|
MAC address filtering
|
|
|
802.1X authentication
|
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2 / L3 fast roaming Rogue AP mitigation View neighbor AP information WIDS / WIPS |
|
Supported D-Link Wireless Controllers / Unified Switches
|
DWC-1000 DWC-2000 |
|
Management platform
|
Hardware controller: DWC / DWS Series |
|
WEB
|
|
|
SNMP (v1, v2c, v3)
|
|
|
CLI
|
|
|
Telnet
|
|
|
Syslog
|
|
