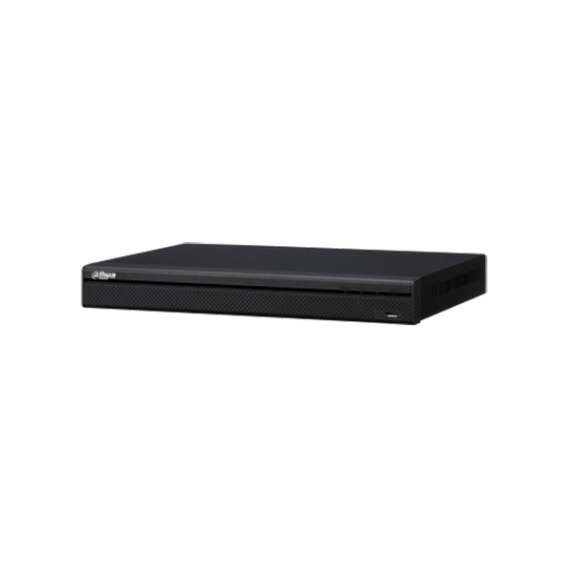

Dahua 16 Channel 1U Lite Network Video Recorder
NVR2216-S2
Features
- NVR for IP cameras
- 16 CH
- 80 Mbps bandwidth supported
- Maximum resolution 6 Megapixel
- Compression H.264+/H.264
- VGA and HDMI Full HD outputs
- IP Dual Stream Access
- Mouse
- Space for 2 HDD
Specifications
| Brand | Dahua |
| Operating System | Embedded LINUX |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Main Processor | Dual-core embedded processor |
| IP Camera Input | 16 Channel |
| Bit Rate | 16kbps~20Mbps for per channel |
| Internal HDD | 2 SATA III Ports, up to 6 TB capacity for each HDD |
| Interface | 1 HDMI, 1 VGA |
| Multi Screen Display | 1/4/8/9/16 |
| Video Detection | Motion Detection, MD Zones 396 (22 x 18), and Tampering |
| Sync Playback | 1/4/8 |
| USB | 2 ports (1 Rear USB 2.0, 1 Front USB2.0) |
| Record Rate | 80 Mbps (with private protocol, 32 Mbps with ONVIF protocol) |
| Max User Access | 128 users |
| Power Supply | 12 V DC |
