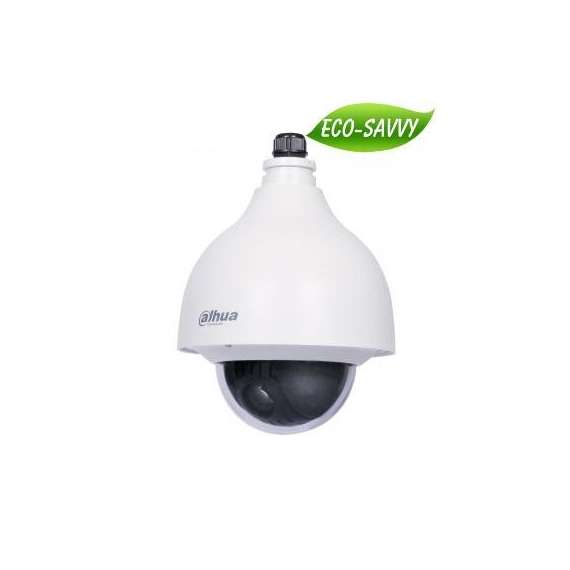

Dahua DH-SD40212S-HN CCTV Camera
Technical Specification
|
Make |
Dahua Technology |
|---|---|
|
Manufacturer |
|
|
Model code |
DH-SD40212S-HN |
|
Chip Inch Size |
1/3 |
|
Colour Type |
Colour / Monochrome |
|
Resolution |
2 MP |
|
Digital (DSP) |
Yes |
|
Specialist Type |
Network |
|
Sensitivity Lux |
0.005 |
|
Electrical Specifications |
Voltage: 24 V AC Power Consumption: 12 W |
|
Focal Length mm |
5.1 ~ 61.2 mm |
|
Mount Type |
Wall, Ceiling, Pendant |
|
Picture Elements HxV |
1944 x 1092 |
|
Network Properties |
Image Frame Rate: 60 fps Interface: RJ-45, 10/100Base-T Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjou |
|
Back Light Compensation |
Yes |
|
Auto Gain Control |
Yes |
|
White Balance |
Yes |
|
Electronic Shutter Range |
1/3 ~ 1/3 0,000 s |
|
S/ N (Signal/ Noise) Ratio dB |
>55 |
|
Signal Mode |
PAL/NTSC |
|
Mini or Compact |
Yes |
|
Zoom |
Yes |
|
Y/ C (Video Output) |
BNC (1.0Vp - p/75ohms) |
|
Compression Type |
H.264/MJPEG |
|
Physical Specifications |
Weight g: 2,300 Dimensions mm: 186 x 234 |
|
Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ 60 C (-40 ~ 140 F) Operating Humidity %: <90 |
|
HD |
Yes |
|
Additional info |
Dahua introduces new DH-SD40212S-HN 2MP HD network mini speed dome camera. It features powerful 12x optical zoom, built-in 2/1 alarm in/out, intelligent 3D positioning with DH-SD protocol. It is perfectly suitable for stations, airports, malls, hotels, boutiques and etc. The camera provides various installations, such as wall, pendant, ceiling as well as in-ceiling-mounting depending on actual needs. |
