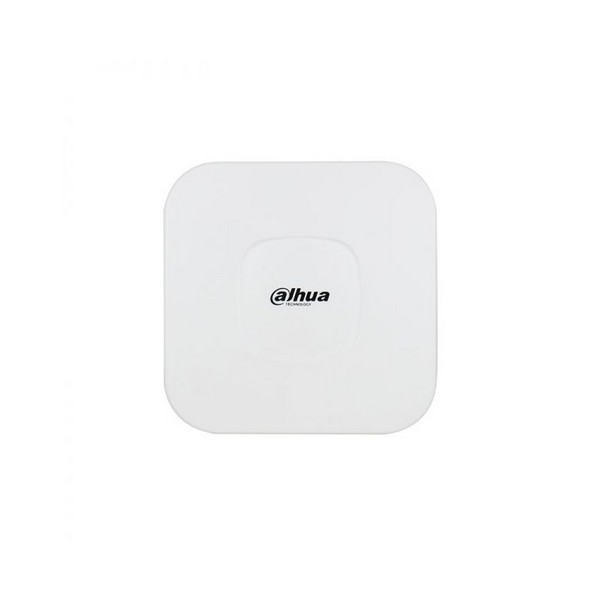

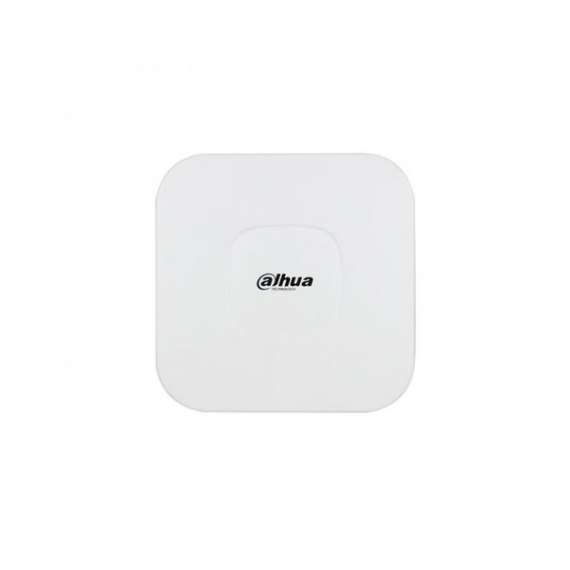

Dahua Indoor PFM885-1 2.4G Wireless Elevator Access point
DH-PFM885-I
Use the high-performance 802.11n 2×2 MIMO chip, and the highest rate can achieve 300Mbps;
>Support proprietary protocol TDMA; when the wireless devices open TDMA, other manufacturers will not be able to link them which ensure the system safety;
>POE or DC power supply optional, which make a strong scene applicability and be more flexible to use;
>Support auto ranging function, real time display straight line distance between client and base station
Description
| Model | DH-PFM885-I |
| Wireless Features | |
| Wireless Standard | IEEE802.11 b/g/n |
| Working Frequency | 2412~2472MHz(extended range: 2312~2732MHz) |
| Wireless Speed | 300Mbps |
| Modulation Mode | OFDM |
| Antenna | Internal antenna: gain 6dBi |
| Output Power | 27dBm (max) |
| Receiving Sensitivity | 11b: -97dBm@ 1Mbps; 11g: -94dBm@6Mbps; 11n: -72dBm@MCS7 |
| Transmission Distance | 500m |
| Wireless Direction Angle | Horizontal 65°, vertical 60° |
| Hardware | |
| Power | 1*PoE RJ45(IN: 220V, OUT: 48V/0.25A), DC 12V |
| Power Consumption | Max. 8W |
| Ethernet Port | 2*LAN RJ45 |
| Working Temperature | -30℃~+70℃ |
| Storage Temperature | -40℃~+80℃ |
| Working Humidity | 5%~95%RH( no condensation) |
| Equipment Dimension | 150mm×150mm×32mm |
| Equipment Weight | 0.5Kg |
| Protection Level | IP41 |
| Software | |
| Encryption Type | WPA-PSK/WPA2/CCMP(AES)/TKIP |
| Network Mode | Route/Network Bridge |
| Working Mode | Access Point/Client/WDS AP/WDS client |
| Security Mechanism | IP/MAC address filtering, hide network name and etc. |
| Network Protocol | TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP |
| TDMA Enhancement | Support(TDMA eliminate hidden nodes influence and greatly improve one-to-many performance) |
| Auto ACK Timing Adjustment | Support(Auto optimize parameter within long-distance communication and make the performance optimal) |
| Management and Log | NTP, Syslog, Telnet, AC, SNMP |
| Webpage Configuration Management | Support webpage configuration, AC remote management and SNMP management |
| Firmware Update | Support Firmware webpage update and AC remote upgrade |
| Bandwidth Flexible Configuration | 5/10/20/40MH |
