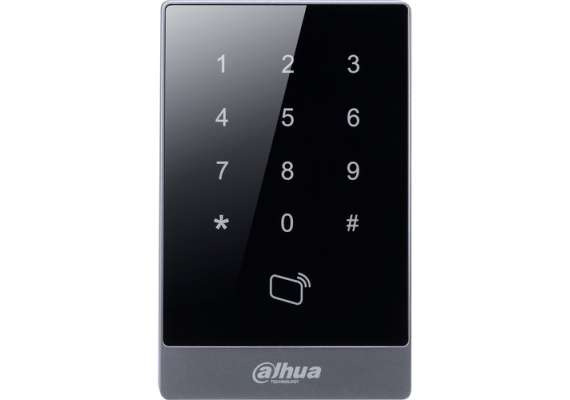

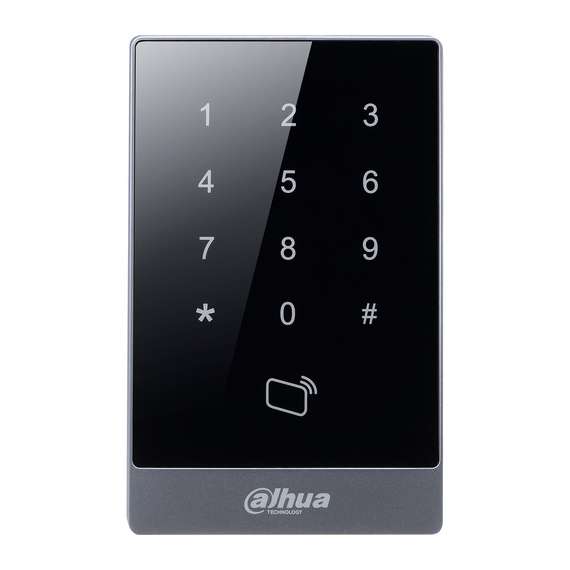

Dahua RFID Card Reader With Touch Keypad
ASR1101A
The DHI-ASR1101A RFID Card Reader from Dahua Technology supports Wiegand 34 and RS-485 protocols and MIFARE 13.56 MHz format. This card reader features a Watch Dog function for tamper detection and a touch-sensitive keypad with a blue backlight. It can be surface mounted.
Key Features
- Supports Wiegand 34 and RS-485 Protocols
- MIFARE 13.56 MHz Format
- Watch Dog Function
- Touch-Sensitive Keypad
Specifications
System
| Main Processor | 8-Bit |
| LCD Display | Blue Backlight |
| Audible Indicator | Buzzer |
Card Reader
| Format | 13.56 MHz MIFARE |
| Maximum Distance | 2.36 to 3.15" / 6 to 8 cm |
| Response Time | |
| Keypad | Touch-Sensitive Keypad with 12 Keys (1 to 9, *, #) |
Interface
| Control | Wiegand 34 and RS-485 |
| Connector | 1 x 8-Pin Terminal, RS-485 Control, and Power |
Certifications
| Safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013 UL 60950-1 CAN/CSA C22.2 No. 60950-1-07 |
| Electromagnetic Compatibility | FCC CFR 47 Part 15 subpart B EN 55032:2015 EN 55024:2010+A1:2015 EN 50130-4:2011+A1:2014 EN 6100-3-2:2014, EN 6100-3-3:2013 |
Electrical & Environmental
| Power Supply | 9 VDC to 15 VDC, 100 mA |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | ≤ 95% |
Construction
| Dimensions | 5.34 x 3.42 x 0.50" / 135.70 x 86.80 x 12.70 mm |
| Weight | 0.55 lb / 0.25 kg |
Packaging Info
| Package Weight | 0.685 lb |
| Box Dimensions (LxWxH) | 6.9 x 4.7 x 2.1" |
