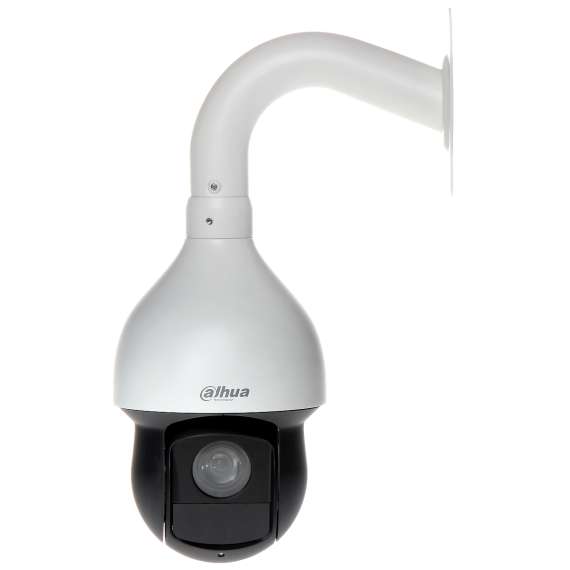

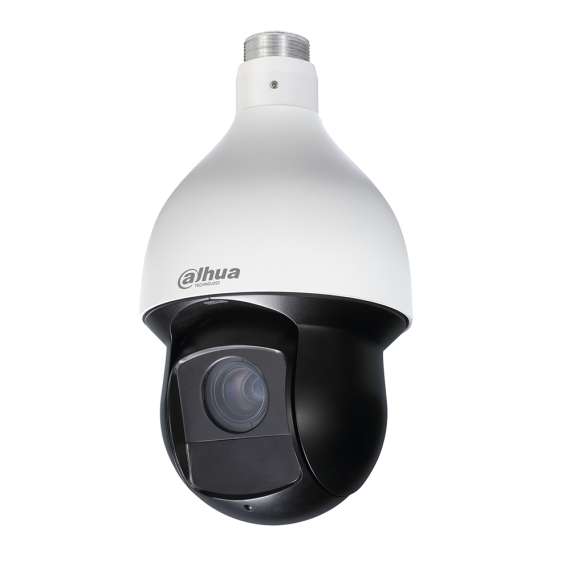

Dahua Speed Dome Outdoor – 1080P IP Network Camera
IP camera equipped with very good high resolution sensor. Due to above it is perfect solution for surveillance systems requiring persons or vehicles recognition.
Built-in IR illuminator allows to operate at night conditions, and vari-focal lens with wide range of view angle adjustment enables optimal set the view field of camera to all conditions. The range of IR illumination according to the manufacturer data, depends on outer conditions (visibility – air transparency, environment, wall colors ie. scene reflectance).
PoE powering possibility, compatible with the 802.3at standard makes the device more universal and easier to install.
For a few models of IP cameras working at 1920 x 1080 resolution we recommend to use of network with 1Gb/s bandwidth.
Specifications
| Standard: | TCP/IP |
| Sensor: | 1/2.8 ” Progressive Scan Exmor CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 – 1080p 1280 x 720 – 720p 704 x 576 – D1 |
| Scanning system: | Progressive |
| Lens: | 4.5 … 135 mm |
| View angle: |
|
| Optical zoom: | x 30 |
| Digital zoom: | x 16 |
| Range of IR illumination: | 100 m |
| S/N ratio: | > 50 dB (AGC off) |
| Video output: | 1 Vpp / 75 Ω |
| Preset rotation speed: | max. 400 °/s |
| Rotation speed (manual control): | 0.1 °/s … 300 °/s (horizontal) 0.1 °/s … 200 °/s (vertical) |
| Horizontal rotation range: | 360 ° continuous |
| Vertical rotation range: | -15 ° … 90 ° |
| RS-485 interface: | |
| Number of presets: | 300 |
| Horizontal scan: |  |
| Route settings: | 8 |
| Image compression method: | H.264 / MJPEG |
| Bitrate: | 1024 … 8192 kbps – H.264 10240 … 16384 kbps – MJPEG |
| Alarm inputs / outputs: | 2 / 1 |
| Audio: |
|
| Main stream frame rate: | 1 … 25 fps – 1080p 1 … 50 fps – 720p |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| WEB Server: | Built-in, NVR compliance |
| Max. number of on-line users: | 20 |
| ONVIF: | 2.42 |
| Memory card slot: | Micro SD memory cards up to 128GB support (possible local recording) |
| Mobile phones support: | Port no.: 37777 or access by a cloud (P2P)
|
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / admin |
| Web browser access ports: | 80, 37777 |
| PC client access ports: | 37777 |
| Mobile client access ports: | 37777 |
| Port ONVIF: | 80 |
| RTSP URL: | rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=1 – Sub stream |
| Main features: |
|
| Power supply: |
|
| Power consumption: | ≤ 23 W |
| Housing: | Speed Dome Metal |
| Color: | White |
| Operation temp: | -40 °C … 70 °C |
| “Index of Protection”: | IP66 |
| Weight: | 4.47 kg (with bracket) |
| Dimensions: | 305 x 450 x 186 mm (with bracket) |
| Supported languages: | English, Polish |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
