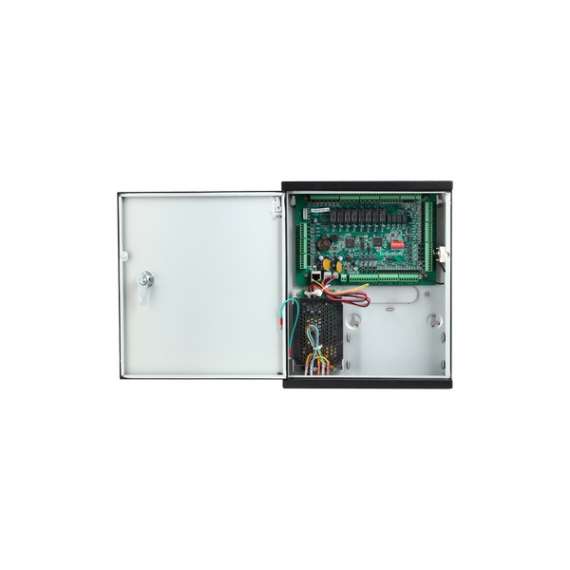

Dahua Technology ASC1204C-D Four Door Two Way Access Controller
Features
- Support 100,000 valid cards & 150,000 records
- Support multiple cards
- Support card, password, fingerprint and combination
- TCP/IP interface to PC
- Wiegand or RS-485 interface to readers
- Door time out alarm, intrusion alarm, duress alarm and tamper alarm
- Anti-pass back, multi-door interlock, multi-card open
- Support 128 efficient time and holiday schedules
- Watch dog function ensure device free from halting
- Surface mounted installation
- Accumulator battery extension
Specifications
|
System |
|
|
Main Processor |
32 Bit |
|
Memory |
16M |
|
Input/Output Ports |
|
|
Input |
Inputs x 20 ( Lock state x 4, Door sensor x 4, Exit button x 4, Alarm x 8) |
|
Output |
Relay x 12(door lock x 4, Inner alarm x 4, External alarm x 4 ) |
|
Reader |
Reader x 8 |
|
Capacity |
|
|
Card holders |
100,000 |
|
Events |
150,000 |
|
Function |
|
|
Control Mode |
Four door two way |
|
Access control |
Anti-pass back, Multi-interlock, Multi-card unlock |
|
User Management |
General, VIP, Guest, Patrol, Black list, Duress |
|
Alarm Function |
Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
|
Period |
Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period |
|
Interface |
|
|
To PC |
RJ45(10/100M) |
|
To Reader |
Wiegand 26/34, RS485 |
|
Genreal |
|
|
RTC |
Yes |
|
Power Supply |
AC85-AC264, 50/60Hz |
|
Operating Temperature |
-30°C to +60°C |
|
Working Humidity |
≤95% |
|
Dimension(W×D×H) |
280mm×320mm×114mm |
|
Weight |
2kg |
|
Working Environment |
Indoor |
|
Certificates |
|
|
CE |
Yes |
|
FCC |
Yes |
