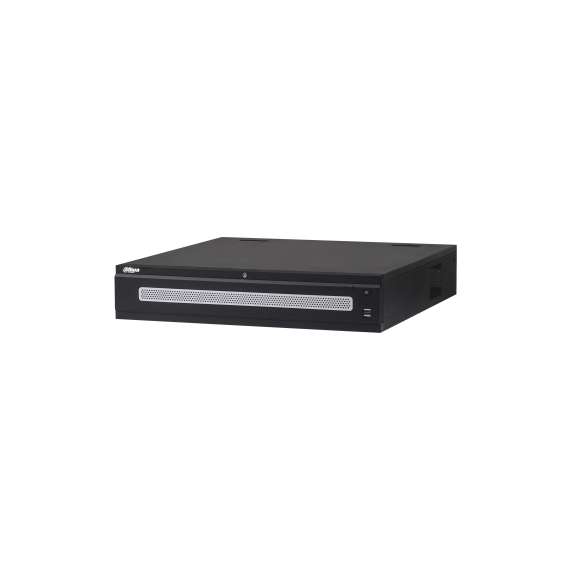

Dahua Technology DHI-NVR608R-128-4KS2 128 Channel NVR
Dahua Technology DHI-NVR608R-128-4KS2 128 Channel NVR
> Intel Processor
> Max 128 IP Camera Inputs
> Max 384Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> Supports RAID 0/1/5/10
> Smart Tracking and Intelligent Video
> Redundant Power
Dahua Technology DHI-NVR608R-128-4KS2 128 Channel NVR
Number of channels: 128, standarts IP, 12 MP, recording: 12 MP, 8 MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p – 20 Mbps, H.264, H.265, MJPEG, 1 stream; IP cameras: 128; audio inputs/audio outputs: 1/1; alarm inputs-outputs: 16/8; HDD: 8 SATA III, up to 8 Tb; RAID: no; port PoE: no; Wi-Fi: no; Connector: HDMI – 2; VGA – 1; RS-485 – 1; RS-232 – 1; USB ports – 2xUSB 2.0, 2xUSB 3.0; operating voltage: DC 100-240 V/20 W; body: plastic/metal; body color: black; dimensions: 444x457x59 mm
Full characteristics
| Device Type | video recorder |
| Connection type | wired |
| DVR type | network |
| Video standard | IP |
| Record resolution | 12 Mpx |
| Recording speed | 12 MP, 8 MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p – 20 Mbps |
| Number of channels | >100 |
| Number of analog cameras | no |
| Number of IP cameras | 128 |
| Video inputs | no |
| Video output | no |
| Audio inputs | 1xRCA |
| Audio outputs | 1xRCA |
| Incoming Bandwidth | 384 Mbps |
| Network Interface | 2 RJ-45 (10/100/1000Mbps), HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Alarm Inputs-Outputs | yes |
| Alarm inputs | 16 |
| Alarm outputs | 8 |
| Video compression | H.264, H.265, MJPEG |
| Streaming | 1 stream |
| Recording modes | constant / schedule / motion detection / alarm |
| Maximum number of users | 128 |
| Mobile applications | iOS, Android |
| Number of HDD | 8 |
| HDD type | SATA III, up to 8 Tb |
| HDD storage capacity | 64 TB |
| RAID | no |
| PoE support | no |
| PoE ports | no |
| Wi-Fi support | no |
| HDMI port | 2 |
| VGA output | 1 |
| USB port | 2xUSB 2.0, 2xUSB 3.0 |
| eSata | no |
| RS-232 | no |
| RS-485 | no |
| Intended for use | home, house, office, store, warehouse, production, garage |
| Compatibility | ONVIF 2.4, CGI Conformant |
| Operating voltage | 100-240V AC |
| Consumption | 20 W |
| Dimensions (WхHхD) | 444x457x59 mm |
| Body color | black |
| Body material | metal, plastic |
| Weight | 9000 g |
| Temperature range | -10…+50°C |
| Producing country | China |
| Device class | middle+ |
