Dahua Technology Standalone Waterproof Fingerprint Door Controller

CODE :

DHI-ASI1212D

Write a review

RWF127,926.42

Request for Quotation

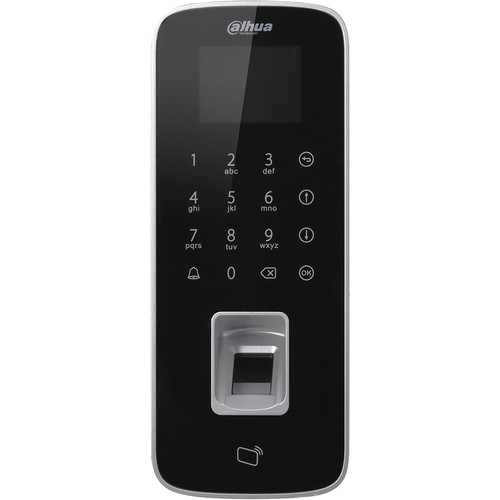

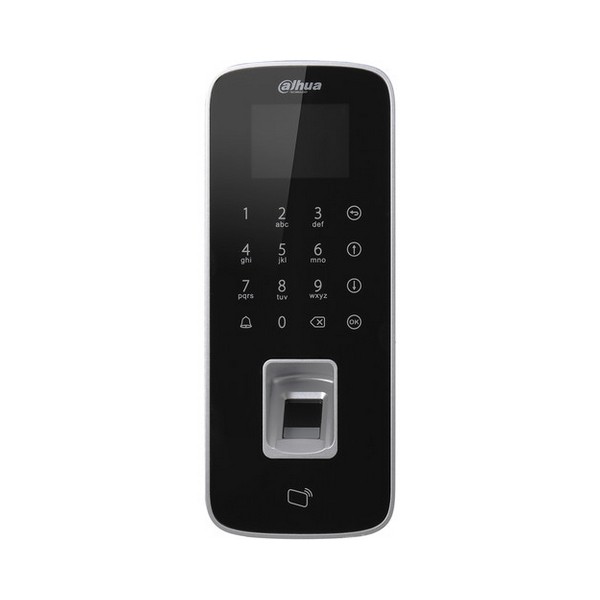

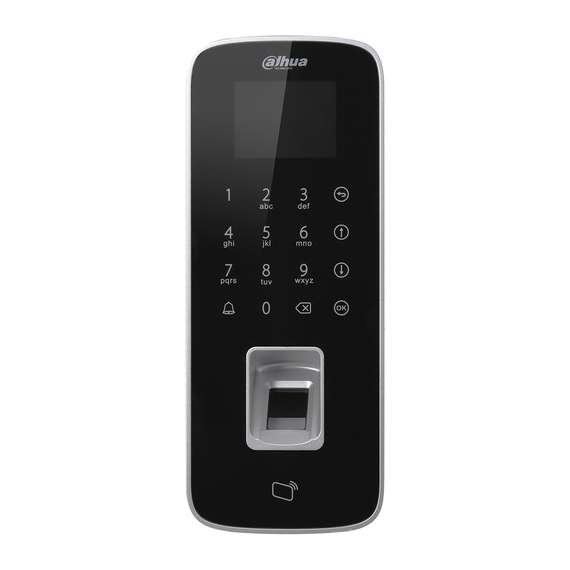

Dahua Technology Standalone Waterproof Fingerprint Door Controller

Description

The Standalone Waterproof Fingerprint Door Controller from Dahua Technology supports MIFARE cards, passwords, fingerprints, or a combination for use as entry credentials. The controller features a touch keypad, an LCD display, and Wiegand or RS-485 interface. It supports up to 30,000 cards, 150,000 events, and 3000 fingerprints. The fingerprint controller is IP65 rated for outdoor use.

Features

TCP/IP to PC with support for WAN communication
Add devices in SmartPSS via P2P connection
Door time-out, intrusion, duress, and tamper alarms
Anti-passback and multi-card open options
Supports 128 time and holiday schedules

Specifications

Cards support:	MIFARE 13.56 MHz
Reading distance of prox-keys:	max. 8 cm
Keyboard built-in:	Touch control keys
Autonomous operation:
Battery backup support:
Input lines:	3
Output lines:	3
Identification time:	< 1.5 s
FAR (False Acceptance Rate):	< 0.00004 %
FRR (False Rejection Rate):	< 0.15 %
Communication:	RS-485 Wiegand LAN
Network interface:	10/100 Base-T
Default admin user / password:	– / 88888888
Power supply:	9 … 15 V DC
Main features:	Mifare 13.56 MHz proximity reader built-in, Fingerprint reader built-in Memory of 3000 fingerprint patterns Possible connection of the external ASR series reader (read in/out access control) Identification modes : Proximity identifier Mifare, Fingerprint, Any combination of the above Tamper detection – removing from mounting surface Support for door contact and exit button Indication of forced entry and the lack of closing doors 30000 indexed users 6 access groups 128 General Purpose Schedules 128 time periods within single Schedule Holiday Schedules Anti-passback History of 150000 events Integration with an alarm system via in/out line Remote programming from PC Watchdog built-in
“Index of Protection”:	IP65
Operation temp:	-30 °C … 60 °C
Permissible relative humidity:	max. 95 % (non-condensing)
Dimensions:	205 x 83 x 33 mm
Weight:	0.29 kg
Supported languages:	English
Manufacturer / Brand:	DAHUA
Guarantee:	3 years
