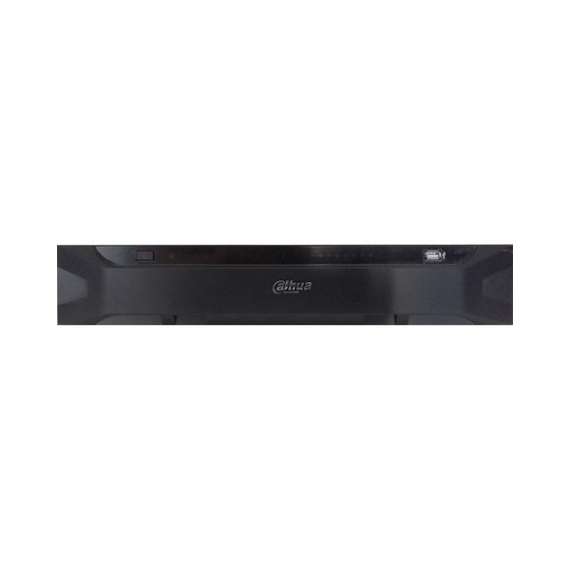

Dahua Ultra HD Network Video Decoder
NVD0905DH-4L-4K
Features
The DHI-NVD0905DH-4I-4K decoder allows to manege displaying images up to 9 monitors with the HDMI connector. The device is fully configurable over the network, and the managed screens can display images from the IP cameras and directly from the HDMI and DVI device inputs.
Specifications
| Supported resolutions: | 9 Channels @ 4000 x 3000 px – 12 Mpx , 9 Channels @ 3840 x 2160 px – 4K , 36 Channels @ 1920 x 1080 – 1080p , 81 Channels @ 1280 x 720 – 720p , 144 Channels @ 704 x 576 – D1 |
| Number of supported screens: | 9 pcs |
| Video inputs: |
|
| Video outputs: | 9 x HDMI |
| Audio outputs: | HDMI |
| Network interface: | 2 x RJ45 10/100/1000 Base-T |
| Default IP address: | 192.168.1.108 |
| Default admin user / password: | admin / – |
| Serial ports: |
|
| Alarm inputs / outputs: | 4 / 4 |
| Power supply: | 230 V AC |
| Power consumption: | ≤ 70 W |
| Operation temp: | -10 °C … 55 °C |
| Weight: | 4.70 kg |
| Dimensions: | 440 x 415 x 76 mm – 1.5 U |
| Manufacturer / Brand: | DAHUA |
| Guarantee: | 3 years |
