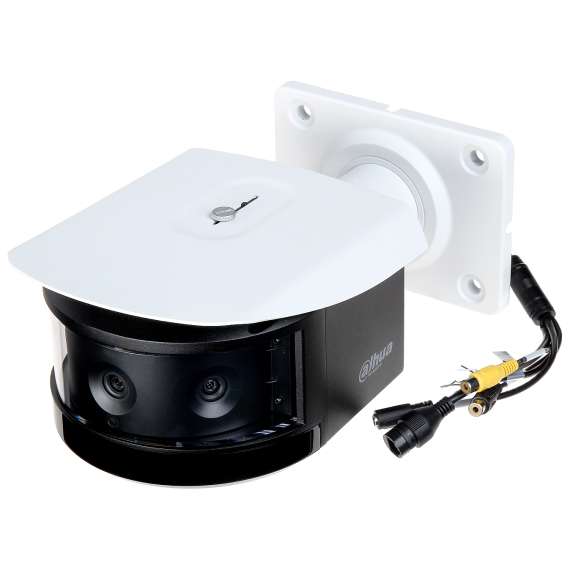

Dahua Vandalproof Panoramic IP Network Camera

CODE : IPC-PFW8601P-A180

Write a review

$416.67

Description
Reviews

The IP camera is equipped with 3 high quality image sensors and 3 lenses with 3.6 mm focal length. Thanks to its unique design, the camera has a 180° viewing angle.

PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install.

Specifications

Standard:	TCP/IP
Sensor:	3 x 1/2.8 ” Megapixel Exmor R CMOS
Matrix size:	3 x 2.0 Mpx – 6.0 Mpx (total)
Scanning system:	Progressive
Resolution:	4096 x 832 – 3.4 Mpx , 3840 x 780 – 3.0 Mpx , 2560 x 520 – 1.3 Mpx , 1280 x 260 – 0.3 Mpx , 1024 x 208 – 0.2 Mpx
Lens:	3 x 3.6 mm / F1.8
View angle:	180 ° (horizontal) 44 ° (vertical)
Range of IR illumination:	30 m
S/N ratio:	> 50 dB
RS-485 interface:
Image compression method:	H.265 / H.264 / MJPEG
Alarm inputs / outputs:	2 / 1
Audio:	External microphone input Audio output Bi-directional audio streaming support
Bitrate:	1024 … 7424 kbps @ H.265 4096 … 12288 kbps @ H.264
Main stream frame rate:	25 fps @ 3.4 Mpx
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, 802.1x Radius, Multicast, ICMP, IGMP, SNMP
Memory card slot:	Micro SD memory cards up to 128GB support (possible local recording)
Mobile phones support:	Port no.: 37777 or access by a cloud (P2P) Android: Free application gDMSS Plus iOS (iPhone): Free application iDMSS Plus
Default IP address:	192.168.1.108
Default admin user / password:	admin / admin
Web browser access ports:	80, 37777
PC client access ports:	37777
Mobile client access ports:	37777
Port ONVIF:	80
RTSP URL:	rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=1 – Sub stream
WEB Server:	Built-in
Max. number of on-line users:	20
ONVIF:	2.42
Main features:	IVS analysis – crossing the line (tripwire), intrusion, abandoned/missing object, face detection, people counting Heat map – the selection in the image by corresponding colors the areas with different traffic WDR – 120 dB – Wide Dynamic Range 3D-DNR – Digital Noise Reduction Possibility to change the resolution, quality and bit rate Time mark and image description Image rotation and mirror Configurable: brightness, contrast, saturation Privacy zones Motion Detection
Power supply:	PoE (802.3at) 24 V AC / 960 mA
Power consumption:	< 23 W
Housing:	Compact, Metal
Color:	Black / White
Vandal-proof:	IK10
“Index of Protection”:	IP67
Operation temp:	-40 °C … 60 °C
Weight:	2.6 kg
Dimensions:	298 x 173 x 121 mm
Supported languages:	English
Manufacturer / Brand:	DAHUA
Guarantee:	3 years
