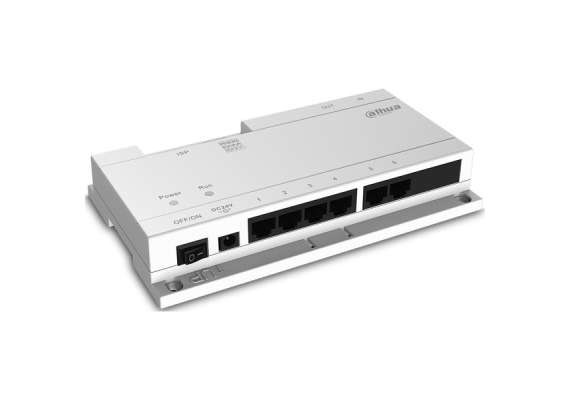

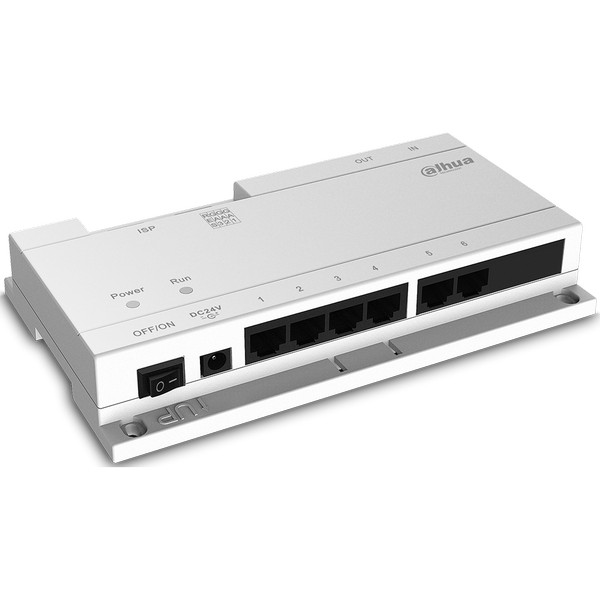

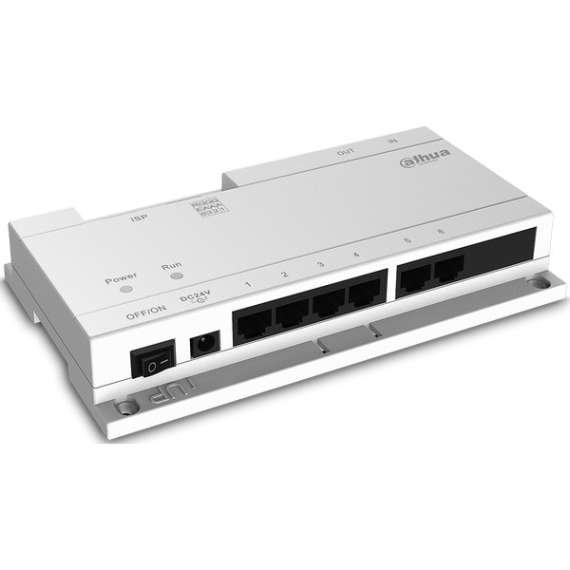

Dahua VTNS1060A 24V Network Power Supply
UPC: 816116024089
The DHI-VTNS1060A 24V Network Power Supply for IP Systems from Dahua Technology connects up to 6 indoor monitors via Cat 5e cables to transmit signal and power efficiently.
- Dahua protocol network power supply switch
-
Transmits signal and power simultaneously
-
Connects up to 6 indoor monitors with Cat 5e cables
-
Weighs less than a pound
Description
Voltage 24 V (requires 24 VAC, 3 A power supply available separately) Power Consumption Standby: 0.2 W (under free load)
Maximum: 45 W (under full load)Operating Temperature 14 to 131°F / -10 to 55°C EMC Certifications FCC CFR 47 Part 15 subpart B
ANSI C63.4 – 2009EN 55022:2010/AC:2011, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007/A1:2011, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2008
IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004
Dimensions 7 x 4.2 x 1.2″” / 178.8 x 107.1 x 30.3 mm Weight 0.66 lb / 0.3 kg Package Weight 0.755 lb Box Dimensions (LxWxH) 9.35 x 6.2 x 2.2″”
