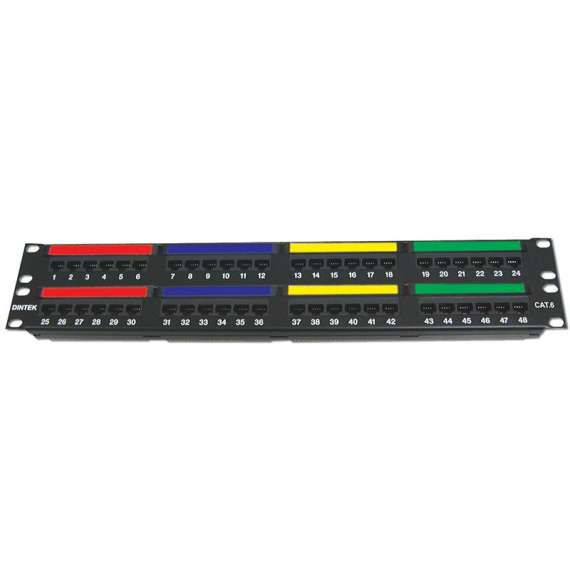

DINTEK PowerMAX 2U 48P Cat.6 UTP Patch Panel

Dintek  PowerMAX 2U 48P Cat.6 UTP patch panel – 1402-04012 are designed to exceed ANSI/TIA-568-2.D performance specifications and support both T568A and T568B wiring schemes. They can be terminated with an industry standard 110 or Krone installation tool. The Panels include a mounting slot for the DINTEK cable management bar, which easily mounts to the back of the panel, for improved routing and strain relief functionality.

Combined with other Dintek products they are the perfect solution to your voice and data communications needs.

Features of 2U 48P Patch Panel – 1402-04012
Component Level Design
Meet & exceeds all current Cat6 Standards
Stripped window label for easy management
110 and krone dual type IDC termination
1U size & 48 port panel, 2U size , 19” 24 port patch panel.
Accept 22~26AWG, stranded or solid wire
Optional rear cable management

Applications of 2U 48P Patch Panel – 1402-04012
Voice; T1; ISDN
10BASE-T (IEEE 802.3)
16Mbps Token Ring (IEEE802.5)
100VG-AnyLAN (IEEE802.12)
100BASE-T Ethernet (IEEE802.3)
155/622Mbps 1.2/2.4 Gbps ATM
1000Mbps Gigabit Ethernet
550MHz Broadband Video

Standards Conformance
ETL Verified
ISO/IEC11801 2nd edition
ANSI/TIA Standard 568-2.D
CENELEC EN 50173

Independently Verified Certifications
ETL Certificate Of Conformance
