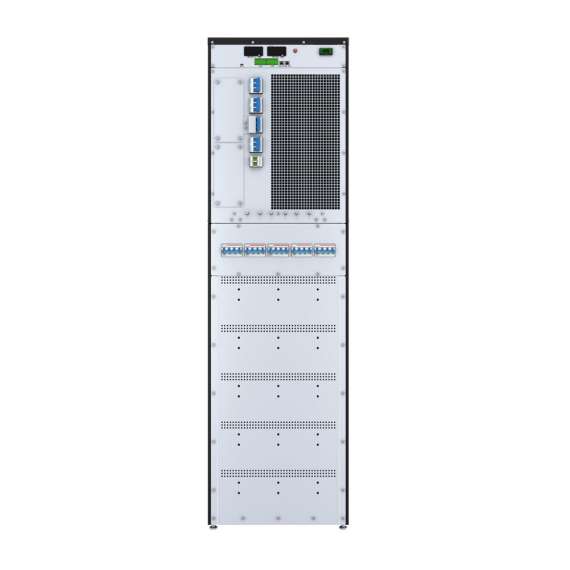

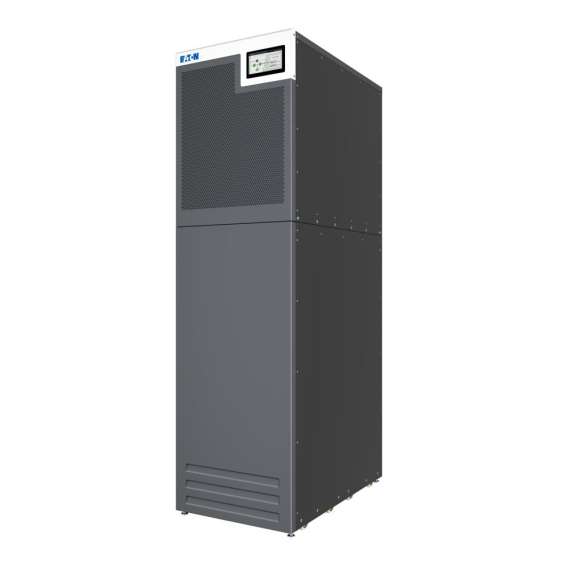

Eaton 93T60KMBSBI 60 kVA Tower Online 3 phase UPS
BATTERY
User replacable batteries: No
Start-on-battery: Yes
External battery connection: Hardwired
Internal battery included: Yes
Battery charger type: ABM technology
Runtime at half load: 23 min
Runtime at full load: 7
ELECTRICAL OUTPUT
Topology: Online
Wattage: 60 kW
kVA rating: 60 kVA
Output apparent power: 60000 VA
Output power factor: 1
Output voltage - min: 380 V
Output voltage - max: 415 V
Voltage distortion output (linear load) - max: 2 %
Output frequency: 50 Hz (50/60 Hz programmable)
Feed type: AC
Phase (output): 3
ELECTRICAL INPUT
Phase (input): 3
Input connection: Fixed connection
Input nominal voltage: 400V default (380/400/415V)
Input voltage - min: 380 V
Input voltage - max: 415 V
Input frequency - min: 50 Hz
Input frequency - max: 60 Hz
Secondary Frequency Min: 50 Hz
Secondary Frequency Max: 60 Hz
COMMUNICATION
Communication: Free-standing model
Number of communication slots: 2
User Interface (HMI): Touchscreen
Type Of Interface: Other
Potential free switch contact: Yes
ADDITIONAL SPECIFICATIONS
Form factor: Tower
Construction Type: Free-standing model
Efficiency (improved efficiency mode): 99 %
Efficiency (eco-mode): 99 %
Package contents: UPS, User manual, Safety instructions
Phase (input): 3
Phase (output): 3
Auto shutdown function: Yes
Audible alarms: Yes
Hot-swappable power modules: No
SNMP: No
Transition time for full load: 0 s
Type Of Interface: Other
Parallelable: Parallel for capacity and redundancy
Number of parallel units: 4
Improved efficiency mode: ESS
Internal maintenance bypass: Yes
Integrated functionality: Network Management
