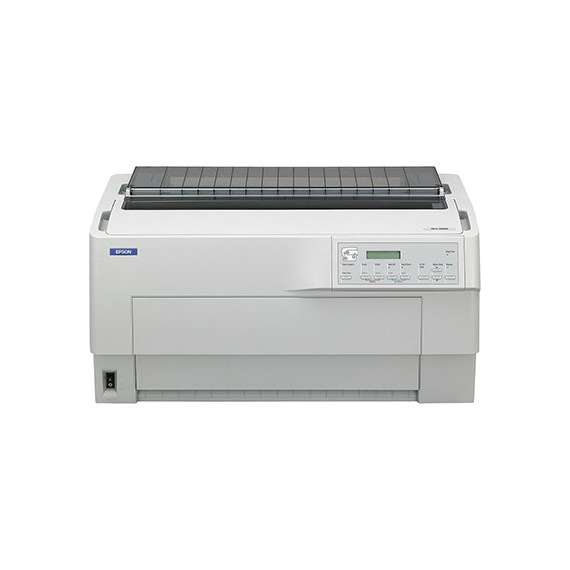

Epson DFX-9000 A3 Mono Dot Matrix Printer

Overview

Fastest 9-pin heavy duty dot matrix printer in its class
Hard working with 133 million lines print volume
High durability with MTBF of 20,000 power on hours
Prints up to 10 part forms (1 original + 9 copies)
Standard USB, Serial and Parallel interfaces (optional network, twinax, coax)
Flexible paper handling with two tractors as standard
The Epson DFX-9000 is a high print volume printer providing an unprecedented level of speed and reliability for the most demanding business. Its advanced paper handling accommodates a variety of paper types while the standard front and rear push tractors can be switched easily between different types of continuous paper. An optional perforation cutter provides paper finishing capabilities.

Specification

Technology
Printing Method
Impact dot matrix
Number of Pins
9 pins
Number of columns
136 columns
Pins
36 Needles (4 x 9)
Print
Printing Speed
HighSpeed-Draft: 10 cpi: 1550 chars/s, 12 cpi: 1450 chars/s, Draft: 10 cpi: 1320 chars/s, NLQ: 10 cpi: 330 chars/s
Carbon Copies
9 plus one original
Printing Resolution
240 x 144 DPI
Connectivity
Interfaces
USB 2.0, Ethernet interface (100 Base-TX / 10 Base-T) (optional), Bidirectional parallel, RS-232, Type B interface
Paper / Media Handling
Document Feed
Continuous media front and rear, Paper output rear, bulk measurement: yes
Paper Formats
Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer)

General
Power consumption
185 Watt, 75 Watt (standby)
Product dimensions
700‎ x 378 x 363 mm (Width x Depth x Height)
Product weight
34 kg
Supported Temperature
Operation 5° C - 35° C
Supported Humidity
Operation 10% - 80%
Compatible Operating Systems
Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Included Software
Epson Status Monitor
Mean Time Between Failures
20.000 hours
Print Head Life
200 Million Strokes/Wire
Noise
Operation: 58 dB (A)
Memory
128 kB Included
Ribbon Yield
15000000 characters Black Draft
Other Features
Emulations
IBM PPDS, ESC/P
Other
Warranty
12 months On-site service
