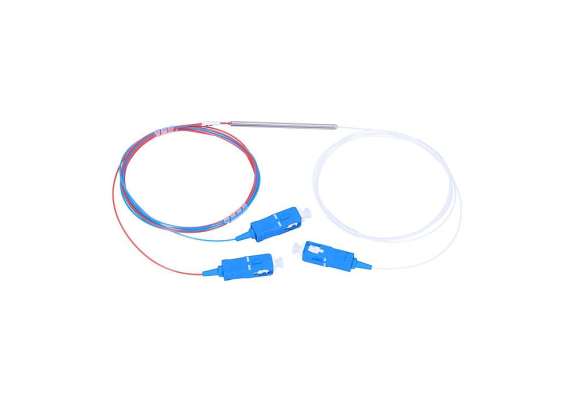

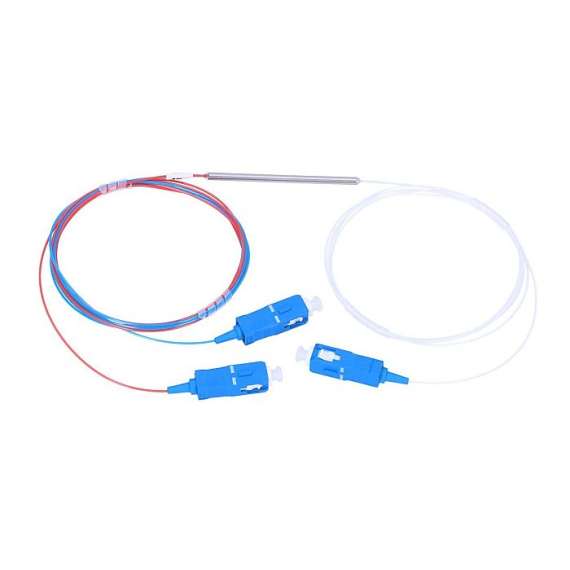

Extralink 1:2, SC/UPC, 1.5m Fiber Splitter
Test Wavelength [nm] : 1310/1490/1550
Coupling Ratio [%] : 10:90
Insertion Loss - 1310nm [dB] : 0.60 (red); 10.50 (blue)
Insertion Loss - 1490nm [dB] : 0.60 (red); 10.50 (blue)
Insertion Loss - 1550nm [dB] : 0.60 (red); 10.50 (blue)
PDL [dB] : < 0.15
Directivity [dB] : > 55
Operating Temperature [°C] :-20 to 70
Storage Temperature [°C] :-40 to +85
Fiber Length [m] ; > 1.0
Dimension [mm] -3 x 54
Pigtail Type - 0.9 Loose Tube
Fiber Type - SM-28E 900um
Connector - SC/UPC
