FDIR-V22

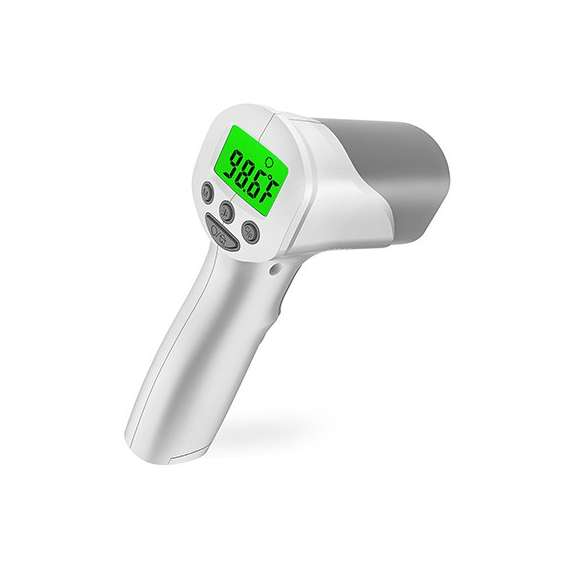

Non-Contact Infrared Thermometer
Measurement mode：Forehead and object temperature measurement modes

Device name：Non-Contact Infrared Thermometer

Measurement mode： Forehead and object temperature measurement modes

Measurement site： Forehead temperature

Measuring distance： 1-6cm (0.4in – 2.5in)

Power supply: d.c.3V, 2×1.5V AAA batteries

Measuring range: For forehead temperature: 89.6°F – 109.2°F (32.0-42.9°C)

For object surface temperature: 32°F-212°F(0-100°C)

Measuring accuracy:(At laboratory conditions)For human body temperature:

± 0.4°F/0.2°C 95.9°F-107.6°F (35. 5°C -42.0°C)

± 0.5°F/0.3°C for other ranges

For object temperature: ±1.8°F/1.0°C within 59.0°F-140.0°F(15-60°C); for other range , ±3.6°F/ 2.0°C

Clinical repeatability: Within ±0.5°F (±0.3°C)

Resolution of display: 0.1°F/0.1°C

Operation condition: 59 to +104.0°F(15-40°C), Relative humidity 20%-85% RH, 70-106 kPa

Storage condition: -13 to +131°F(-25-55°C), Relative humidity ≤95% RH, 70-106 kPa

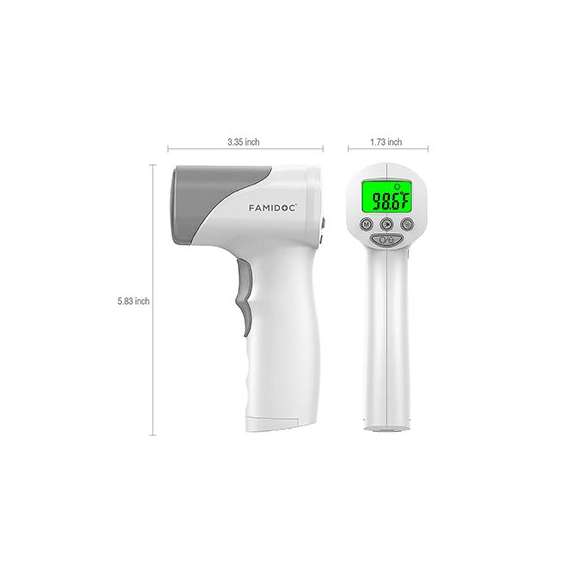

Size: 148x85x44mm

Weight: 110g

High body temperature hint: ≥100.4°F (≥38°C)

Grade of waterproof: IP22

Electric shock: Internally powered ME equipment

Applied part: Type BF applied part, including the whole unit

Mode of operation: Continuous operation
