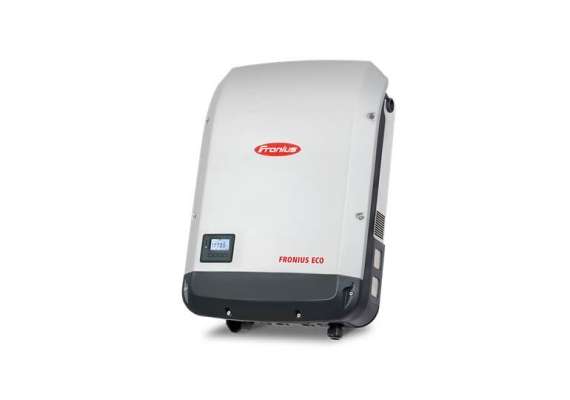

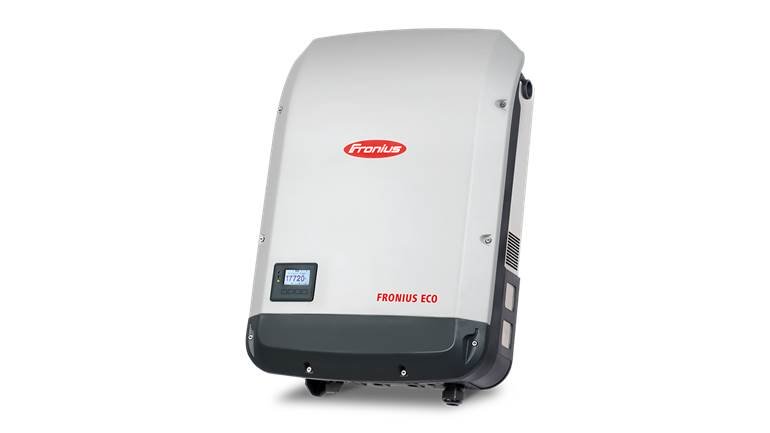

Fronius Eco 27.0-3-S Light Inverter

PRODUCTCODE_25025
Write a review
$4,587.30

Request for Quotation
BrandFronius ConditionNew

INPUT DATA

Number of MPP trackers
 1
Max. input current (Idc max)
 44,2 A
Max. short circuit current, module array
 71,6 A
DC input voltage range (Udc min - Udc max)
 580 - 1000 V
Feed-in start voltage (Udc start)
 650 V
Nominal input voltage (Udc,r)
 580 V
MPP voltage range (Umpp min - Umpp max)
 580 - 850 V
Usable MPP voltage range 580 - 850 V
Number of DC connections 6
Max. PV generator power (Pdc max)
 37,8 kWpeak

OUTPUT DATA

AC nominal output (Pac,r)
 25 kW
Max. output power (Pac max)
 25 kVA
AC output current (Iac nom)
 37,9 / 36,2 A
Grid connection (Uac,r)
 3~ NPE 400/230, 3~ NPE 380/220 V
AC voltage range (Umin - Umax)
 150 - 275 V
Frequency (fr)
 50 / 60 Hz
Frequency range (fmin - fmax)
 45 - 65 Hz
Total harmonic distortion
 < 2 % 2="" %="">
Power factor (cos φac,r)
 0 - 1 ind./cap.

GENERAL DATA

Height 725 mm
Width 510 mm
Depth 225 mm
Weight 35,7 kg
Degree of protection IP 66
Protection class 1
Overvoltage category (DC / AC) 1)
 2 / 3
Night-time consumption < 1 w 1="">
Inverter design Transformerless
Cooling Regulated air cooling
Installation Indoors and outdoors
Ambient temperature range -25°C - +60°C
Permitted humidity 0 - 100 %
Max. altitude 2)
 2.000 m
DC connection technology 6x DC+ and 6x DC- screw terminals 2.5 - 16 mm²
AC connection technology 5-pin AC screw terminals 2.5 - 16 mm²
Certificates and compliance with standards ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727,
AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G99, UNE 206007-1, SI 4777, CEI 0-16, CEI 0-21
Brand
Fronius
Condition
  • New
