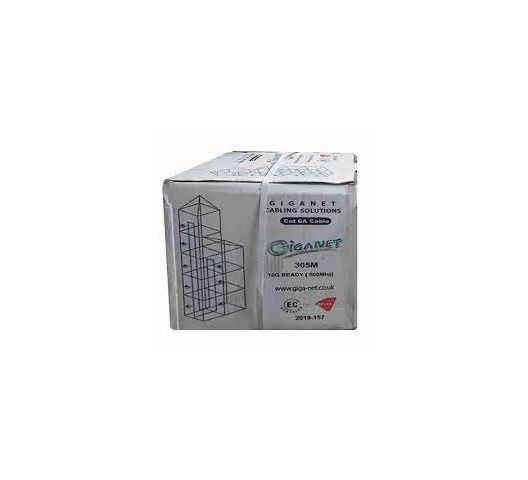

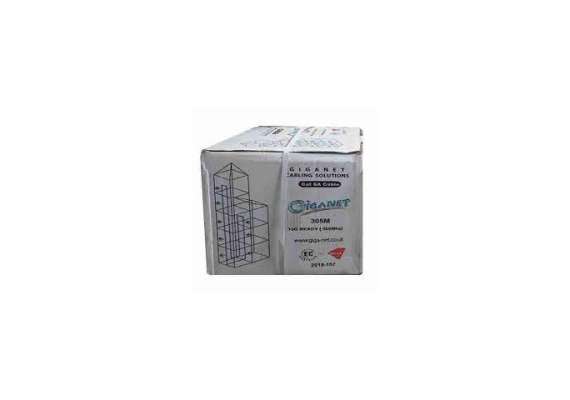

Giganet Cat 6A F/UTP Indoor 305 Cable
GN-C6A-F/UTP-PVC
The Giganet Category 6A 500Mhz F/UTP Foil Screened cable has been designed to exceed the ISO/IEC, TIA and CENELEC for Category 6A component requirements. Each cable consists of 8 color-coded 23AWG polyethylene insulated, solid bare copper, conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are then formed around a central ‘X’ shaped polyethylene filler. This filler assists in maintaining and enhancing the cable's performance. Clear Mylar tape is then wrapped around this unit and a foil tape screen with drain wire applied. The foil screen provides protection from Electromagnetic Interference (EMI) which can occur when data is transmitted at high frequencies.
Specifications
Conductor: 23AWG
Length: 305M
Material: Solid bare Copper
Sheath: PVC
Performance: 500Mhz
Standards: ANSI/TIA-568.2-D, ISO/IEC 11801-1 and EN 50173-1
Specifications
Conductor: 23AWG
Length: 305M
Material: Solid bare Copper
Sheath: PVC
Performance: 500Mhz
Standards: ANSI/TIA-568.2-D, ISO/IEC 11801-1 and EN 50173-1
