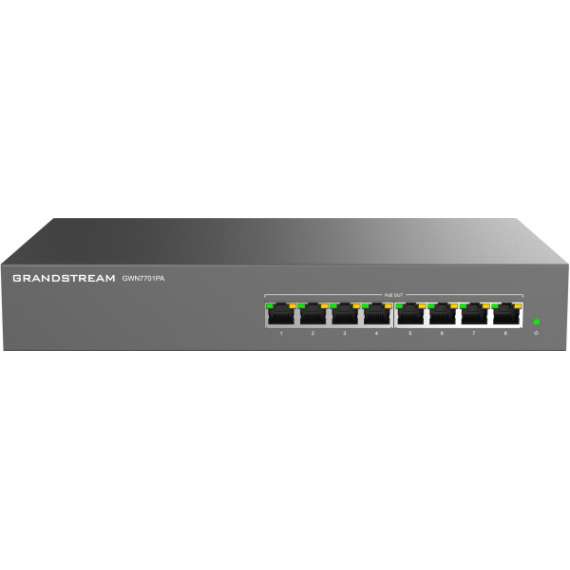

Grandstream GWN7701PA 8port Unmanaged Gigabit PoE Switch
GWN7701PA
BrandGrandstream
ConditionNew
Device MountingRack Mount
Device SpeedGigabit (10/100/1000Mbps)
Number of Ports8 ports
Power over Ethernet (PoE)Half PoE
SFP PortsNone
Switch TypeUnmanaged
Warranty IssuerManufacturer
Casing: Metal
8× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
Network Media 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
1~8 Ports 802.3 af/at compliant
Up to 30W on Each Port
Max. PoE Power Budget 145W
Overload to cut off the lowest-priority port
Priority: Port 8 to Port 1
Mac Address Table 8K
Switching Capacity 16Gbps
Jumbo Frame 9KB
Mac Address Auto-Learning & Auto-Aging
IEEE 802.3x Flow Control, 802.1p/DSCP QoS
Unlink clear FDB Feature
IGMP Fast-Leave, IGMP Snoop, Route Port Autolearn, Query Refresh Member Port
Standards & Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
LED Indicators: Per port Link/Activity Green, Per port PoE output Yellow, Per device Power Green
Internal Power Adapter 100-240V AC, 50/60Hz,150W
Max. Power Consumption by Base System 6.7W @220V/50Hz (excluding PoE output power)
Compliance FCC, CE, RCM, IC, UKCA
Operating Temperature 0 to 40°C
Storage Temperature -40 to 60°C
Operating Humidity 10% to 90% Non-condensing
Storage Humidity 10% to 90% Non-condensing
Mounting: Desktop/Rack-mounted
Unit Dimensions (L x W x H) 280 x 180 x 44mm
Package Dimensions (L x W x H) 366 x 211 x 53mm
Unit Weight 1.5Kg
Entire Package Weight 2.1Kg
8× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
Network Media 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
1~8 Ports 802.3 af/at compliant
Up to 30W on Each Port
Max. PoE Power Budget 145W
Overload to cut off the lowest-priority port
Priority: Port 8 to Port 1
Mac Address Table 8K
Switching Capacity 16Gbps
Jumbo Frame 9KB
Mac Address Auto-Learning & Auto-Aging
IEEE 802.3x Flow Control, 802.1p/DSCP QoS
Unlink clear FDB Feature
IGMP Fast-Leave, IGMP Snoop, Route Port Autolearn, Query Refresh Member Port
Standards & Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
LED Indicators: Per port Link/Activity Green, Per port PoE output Yellow, Per device Power Green
Internal Power Adapter 100-240V AC, 50/60Hz,150W
Max. Power Consumption by Base System 6.7W @220V/50Hz (excluding PoE output power)
Compliance FCC, CE, RCM, IC, UKCA
Operating Temperature 0 to 40°C
Storage Temperature -40 to 60°C
Operating Humidity 10% to 90% Non-condensing
Storage Humidity 10% to 90% Non-condensing
Mounting: Desktop/Rack-mounted
Unit Dimensions (L x W x H) 280 x 180 x 44mm
Package Dimensions (L x W x H) 366 x 211 x 53mm
Unit Weight 1.5Kg
Entire Package Weight 2.1Kg
Condition
- New
Device Mounting
- Rack Mount
Device Speed
- Gigabit (10/100/1000Mbps)
Number of Ports
- 8 ports
Power over Ethernet (PoE)
- Half PoE
SFP Ports
- None
Switch Type
- Unmanaged
Warranty Issuer
- Manufacturer
