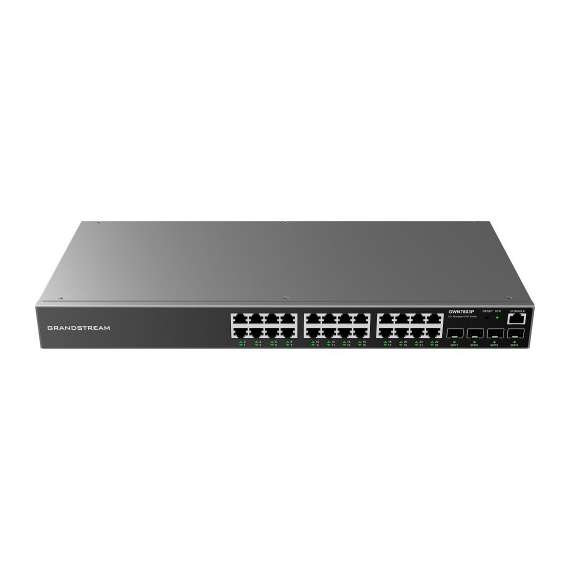

Grandstream GWN7803P 24 port Gigabit Managed PoE Switch

24x Gigabit Ethernet Ports with PoE/PoE+ support (IEEE 802.3af/at), 4x Gigabit SFP Ports
Smart power control to support dynamic PoE/PoE+ power allocation per port
Max. PoE Power Budget 360W
Max Output Power per PoE Port 30W
Total non-blocking throughput 28Gbps
Switching Capability 56Gbps
Forwarding Rate 41.66M packets per second
Packet Buffer 4.1MB
Forwarding Mode: store-and-forward
Integrated Power Supply 400W
Multicast: IGMP Snooping, MLD Snooping, MVR
DHCP server, DHCP relay, Option 82, 60,160 and 43
1x Console Port
1x tri-color LED for device tracking and status indication,
28x green LEDs for data ports
24x yellow-color LEDs for PoE ports
Desktop, wall-mount, or rack-mount (rack-mount brackets included)
Operating temperature 0°Cto 45°C, humidity 10-90% RH (Non-condensing)
Storage temperature -10°C to 60°C, humidity: 5% to 95% (Non-condensing)

Switching:

8K static, dynamic and filtering MAC addresses
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP (pending)
8 link aggregation groups
Spanning tree, 64 instances for STP/RTSP/MSTP

QoS/ACL:

Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
Port priority
Priority mapping
Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
Traffic shaping
Rate limit
1.5K ACL for Ethernet, IPv4 and IPv6
Maintenance:

CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
Security:

User hierarchical management and password protection, HTTPS, SSH, Telnet
802.1X authentication
AAA authentication including RADIUS, TACACS+
Storm control
Port isolation, port security, sticky MAC
Filtering MAC address
IP source guard, DoS attack prevention, ARP inspection
DHCP Snooping
Loop protection including BPDU protection, root protection and loopback protection
Kensington Security Slot (Kensington Lock) support
