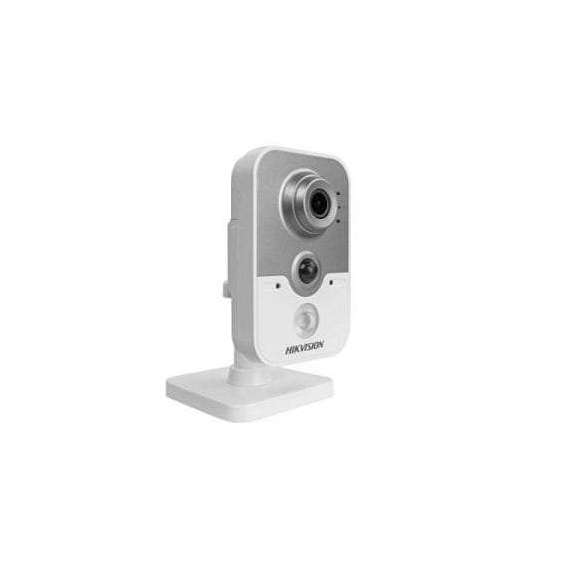

Hikvision DS-2CD2442FWD-IW 4MP Wi-Fi Network Cube Camera
Hikvision DS-2CD2442FWD-IW 4MP Wi-Fi Network Cube Camera
The Hikvision DS-2CD2442FWD-IW 4MP Wi-Fi Network Cube Camera with Night Vision & 2.8mm Lens sold at Almiriatechstore has a 1/2.8″ progressive scan CMOS to capture 2688 x 1520 resolution video at up to 20 fps. This Wi-Fi camera has a night vision range up to 33′. Its 2.8mm fixed lens delivers a wide 105.8° horizontal field of view. Two-way audio is possible thanks to a built-in microphone and speaker. H.264, H.264+, and MJPEG compression keep file sizes manageable while maintaining the best quality possible. Integrated PoE technology simplifies connectivity by enabling the transmission of data and power through one cable. An onboard microSD/SDHC/SDXC slot supports cards up to 128GB. microSD cards are available for purchase separately.
This device is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices.
- Built-in Wi-Fi
- IR cut filter with auto switch allows for true day and night functionality
- 3D-DNR
- 120 dB wide dynamic range
- Dual stream support
- PIR range up to 26.2′
- Detection modes include intrusion detection, line crossing detection, motion detection, and dynamic analysis
- Alarm triggers include tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, and illegal login
- Image settings include rotate mode, brightness, saturation, sharpness, and contrast
- Backlight compensation
- ROI
- Mirroring
- Privacy masking
- Password protection
- 1 alarm input and output
- Remote viewing via Hik-Connect or iVMS-4500 app
- NAS storage support
- 12 VDC and PoE power
| CAMERA | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Lens: | 2.8 mm, horizontal field of view 105.8° [2.0 mm (126°), 4 mm (83°), optional] | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR |
| COMPRESSION STANDARD | ||
|---|---|---|
| Video Compression: | H.264/MJPEG/H.264+ | |
| H.264 code profile: | BaseLine Profile/Main Profile | |
| Video bit rate: | 32Kbps~8Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 | |
| Audio bit rate: | 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2) |
| IMAGE | ||
|---|---|---|
| Max. Image Resolution: | 2688 × 1520 | |
| Frame Rate: | 50Hz: 20fps (2688 × 1520), 25fps (1920 × 1080, 1280×720) 60Hz: 20fps (2688 × 1520), 30fps (1920 × 1080, 1280×720) |
|
| Sub Stream: | 50Hz: 20fps (640 × 360, 352 × 288) 60Hz: 15fps (640 × 360, 352 × 240) |
|
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | |
| BLC: | Yes, zone configurable | |
| 3D DNR: | support | |
| ROI: | support |
| NETWORK | ||
|---|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
| INTERFACE | ||
|---|---|---|
| Audio: | 1 built-in mic, 1 built-in speaker, mono sound | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | 1 alarm input, 1 alarm output | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
