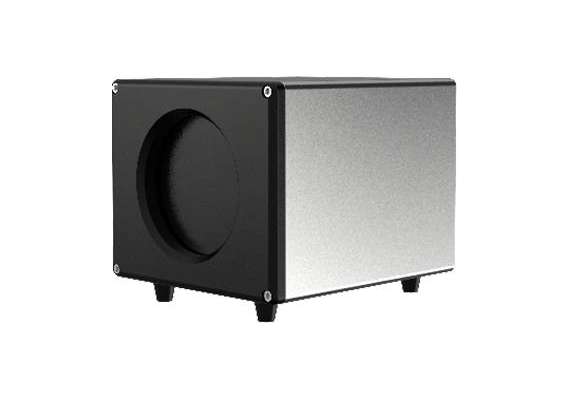

Hikvision DS-2TE127-G4A Black Body Calibrator

CODE : DS-2TE127-G4A

Write a review

$2,107.14

Description
Reviews

The DS-2TE127-G4A Black Body Calibrator from Hikvision is designed for calibrating thermographic devices. This unit can be used to calibrate an IR light system, measure material emissivity, measure parameters of an IR sensor, accurately measure temperature, and transmit temperature between an IR emitter and a thermal device.

Features

Designed to calibrate thermal devices
Provides a stable heat source
Supports different temperature settings
Compensates for interference

Can be mounted on a desk or a tripod with 1/4-20" UNC interface

Technical Specifications

Temperature Range	Environment Temperature: 41 to 122°F / 5 to 50°C
Effective Radiating Area	2.76 x 2.76" / 70 x 70 mm
Temperature Resolution	0.18°F / 0.1°C
Temperature Accuracy	±0.18°F / ±0.1°C
Temperature Stability	±0.18°F/h / ±0.1°C/h
Effective Emissivity	0.97 (±0.02)
Power	100 to 240 VAC
Power Consumption	20 W
Operating Temperature	32 to 104°F / 0 to 40°C
Dimensions	4.72 x 6.95 x 4.71" / 120 x 176.6 x 119.6 mm
Weight	4.08 lb / 1.85 kg
