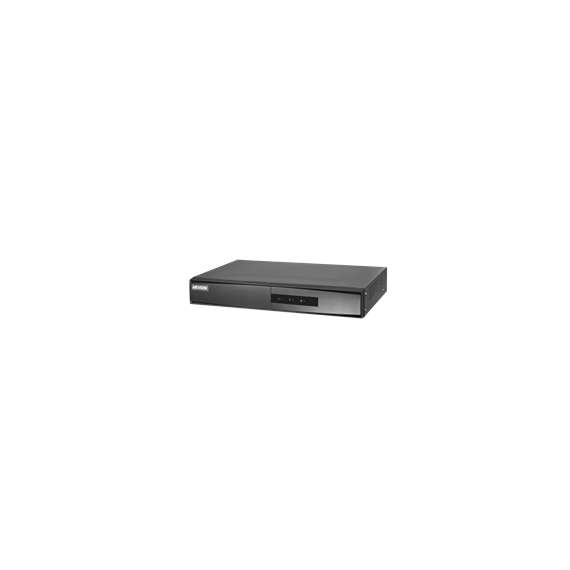

Hikvision DS-7108NI-QI/8P/M 8 Channel 1 Hdd Slot NVR
Overview
-
Connectable to the third-party network cameras
-
Up to 8 network cameras can be connected
-
H.265+/H.265 compression effectively reduces the storage space and costs
-
Full channel recording at up to 4 MP resolution
-
HDMI/VGA output at 1080p resolution
-
1-ch playback at 4 MP resolution or 2-ch at 1080p resolution
-
1 SATA hard disk can be connected with 6TB capacity
-
Supports line crossing and intrusion detection
-
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
-
One-key operation: automatically search, modify and add IP cameras after device is activated
-
Hik-Connect for easy network management
-
100 Mbps Ethernet network interface
-
4/8 independent 100 Mbps built-in switch network interfaces
Technical Specifications
Video/Audio Input
IP video input: 8-ch
IP Video input: Up to 4 MP resolution
Network
Incoming bandwidth: 60 Mbps
Outgoing bandwidth: 60 Mbps
Video/Audio Output
HDMI/VGA output: 1-ch, resolution:1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Decoding format: H.265+/H.265/ H.264+/H.264
Live view / Playback: 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Hard Disk
Interface Type: 1 SATA interface
Capacity:Up to 6TB capacity for each HDD
External Interface
Network Interface: 1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface
USB Interface: 2, USB2.0
POE
Supported Standard: AF and AT
Interface:8 independent 10 /100 Mbps PoE Ethernet interfaces
Max. Power: 75W
General
Power: ≤ 90W
Consumption(without hard disk and POE): ≤ 10 W
Working Temperature: -10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:10 % ~ 90 %
Chassis: 1U chassis
