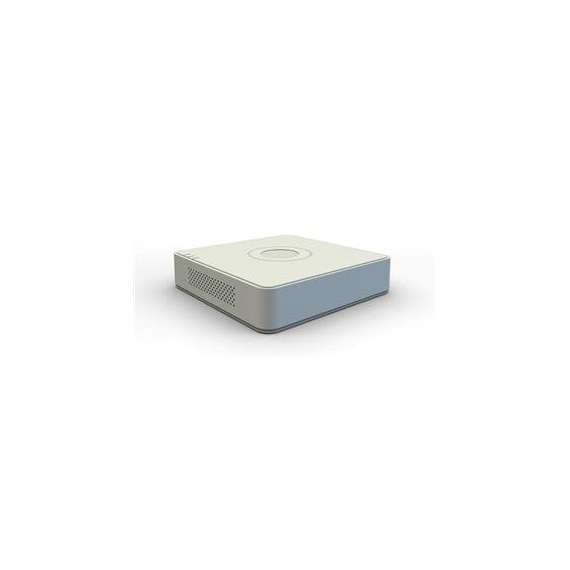

Hikvision DS-7116HGHI-M1 (720P,Turbo HD 3.0)DVR

CODE : DS-7116HGHI-M1

Write a review

$79.37

BrandHikvision

Description
Features
Reviews

Overview

H.264 ,H.264+& Dual-stream video compression
• Support HD-TVI, AHD and analog cameras with
adaptive access

• Up to 3 MP resolution for recording of the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N

•Support 1080P lite mode enabled to realize the real-time

1080P lite and 720P lite resolution
• Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7104/7108HQHI-F1/N and 4K (3840 × 2160) resolution for HDMI output of DS-7116HQHI-F1/N

• Long transmission distance over coax cable
• Up to 4/8-ch synchronous playback at 1080p resolution

• Playback at up to 256X speed.

Technical Specifications

Video/Audio Output
HDMI/VGA Output:		HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Recording resolution:		When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-6 Mbps
Stream Type:		Video/Video&Audio
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Playback Resolution:		3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback:		16-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

Hard Disk Driver
Interface Type:		1 SATA Interface
Capacity:		Up to 6 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:		2 USB 2.0 Interfaces

General
Power Supply:		12V DC
Consumption:		≤ 20W(without hard disks)
Working Temperature:		-10 oC ~+55 oC (14 oF ~ 131 oF)
Working Humidity:		10% ~ 90%
Chassis:		Mini 1U chassis
Dimensions:		285 × 210 × 45 mm (11.2× 8.3 × 1.8 inch)
Weight:		≤1.2 kg(2.6lb)

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.264,H.264+
Analog and HD-TVI video input:		16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:		Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N. Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
