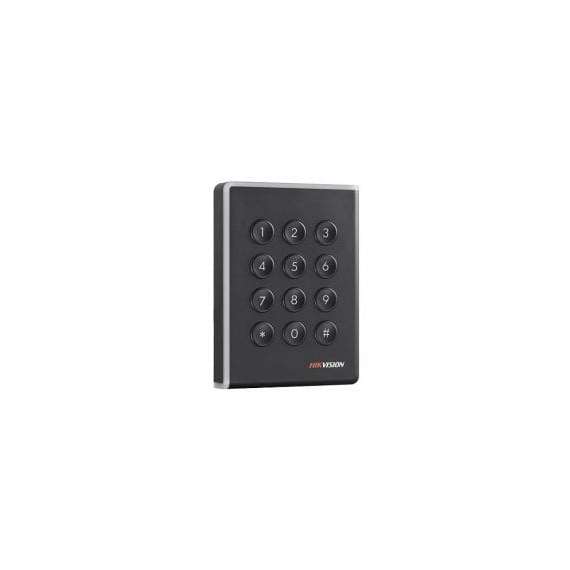

Hikvision DS-K1108MK Mifare Card Reader & Keypad Access Control
Hikvision DS-K1108MK Mifare Card Reader with Keypad
- 32-bit high-speed processor
- Support RS485 and Wiegand(w26, w34) protocol
- Build-in Mifare card reading module (Frequency: 13.56MHz). Meets the standard of ISO 14443-A.
- Supports reading Mifare card No
- Tamper-proof function
- Build-in buzzer for status indication
- Online upgrading
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
| Power Supply | DC 12V |
| Power Consumption | ≤2W |
| Processor | 32bit |
| Radio Frequency Standard | ISO 14443-A |
| Induction Distance | ≤50mm (≤1.97″) |
| ID Settings | via DIP Switch |
| Communication Mode | RS485/Wiegand (Set via DIP Switch) |
| Prompt | Buzzer |
| Keypad | Keypad with 12 Keys (0~9, *, #) |
| LED Indicator | Power/Status |
| Working Temperature | -20°C to +65°C (-4°F to +149°F) |
| Working Humidity 1 | 0%~90% (No Condensing) |
| Dimension | 123mm × 88mm × 21mm (4.84″ × 3.46″ × 0.83″) |
| Tamper Alarm | Support |
| Protection Level | IP65 |
| Mounting Method | Wall Mounting with/without Gang Box |
