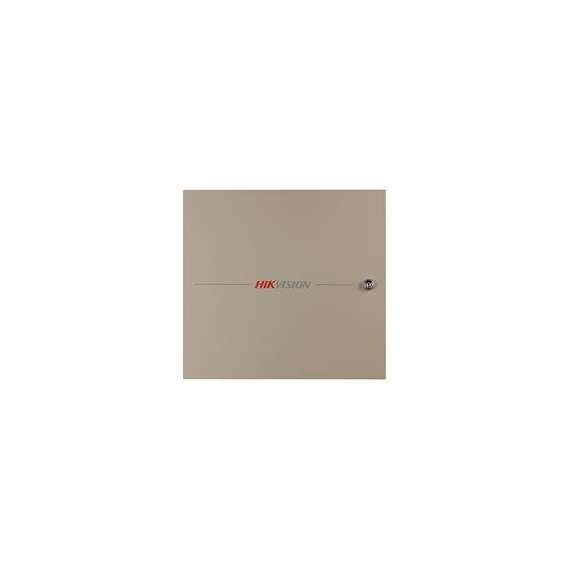

Hikvision DS-K2602 Double-door Access Controller
PRODUCTCODE_14704
| Device Interfaces | ||
|---|---|---|
| Accessible Card Reader: | 4 Card Readers (RS485 Interface) and 4 Card Readers (Wiegand Interface) Connectable | |
| Uplink Communication Interface: | TCP/IP Network Interface and RS-485 Interface | |
| Downlink Communication Interface: | RS-485 and Wiegand (W26/W34) | |
| Output Interface: | Lock Relay×2, Alarm Relay×4 | |
| Input Interface: | Alarm Input×4,Door Sensor×2,Exit Button×2,Case Input×4,Tamper Alarm×1 | |
| General | ||
|---|---|---|
| Working Voltage: | DC 12V/1A | |
| Power Consumption: | ≤4W(Without Load); ≤100W(with Load) | |
| LED Indicator: | Power Supply Status, Communication Status, Working Status | |
| Certification: | CE, FCC | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Dimensions (L×W×H): | 370mm x 345mm x 90 mm (14.6” x 13.6” x 3.5") | |
| System Parameters | ||
|---|---|---|
| Storage: | cards information: 100,000 (200,000 expandable) access control events : 300,000 (600,000 expandable) |
|
| Capacity: | 16M | |
| Processor: | 32-bit | |
