Hikvision DS-KAD606-P Distributor

CODE : DS-KAD606-P

Write a review

$51.59

Model DS-KAD606-P
Network parameters
Interface number Eight 10/100 Mbps Interfaces Interface type RJ-45, Full/Half-Duplex, MDI/MDI-X Self-Adaptive Standard IEEE802.3, IEEE802.3u, IEEE802.3x
Processing type Storing and Forwarding Flow control IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex)
Priority queue Four Max. VLAN 64 VLAN ID No. VID1 to VID4094 MAC address list 8K Internal buffer 1 Mbit
General Power supply 24 VDC Power consumption ≤8 W Working temperature -10°C to 55°C (14°F to 131°F)
Working humidity 10% to 90%, No Condensation
Dimensions (L × W × H) 176 mm × 91 mm × 32 mm (69.3" × 35.8" × 12.6")

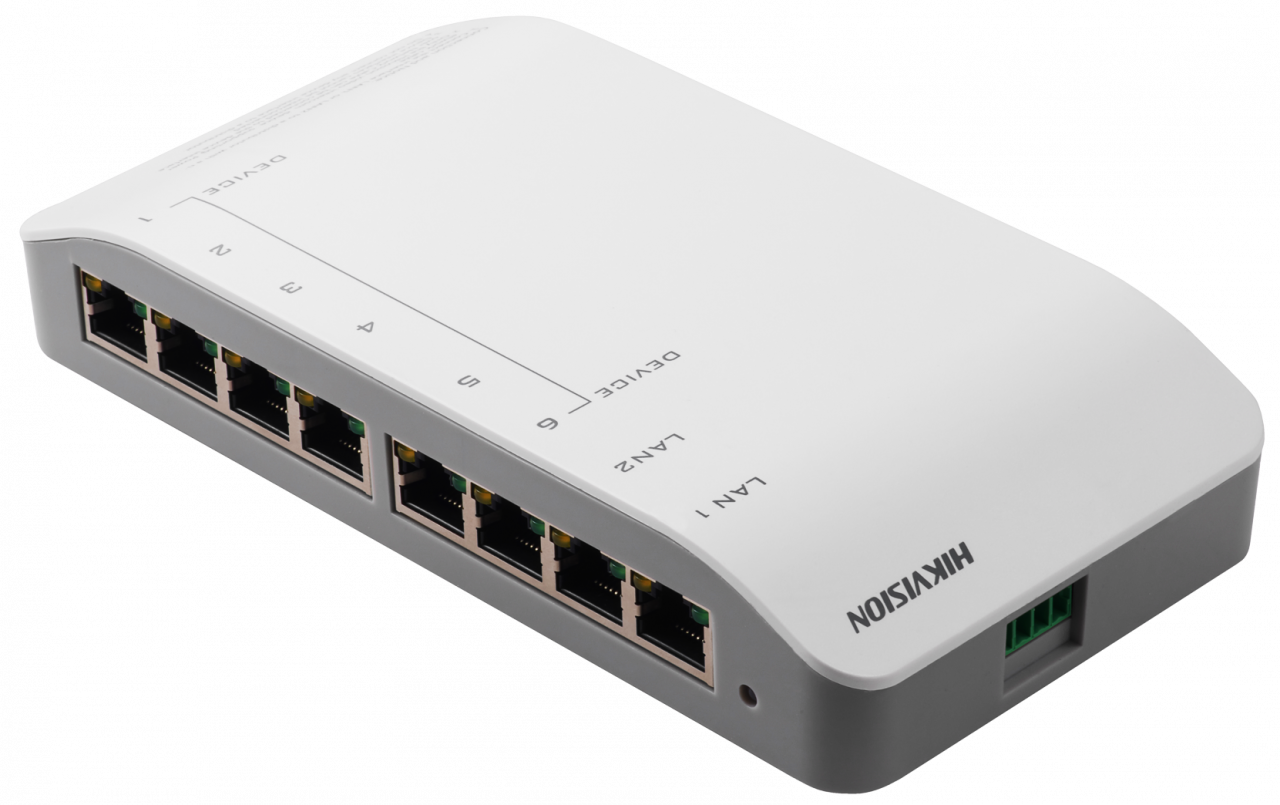

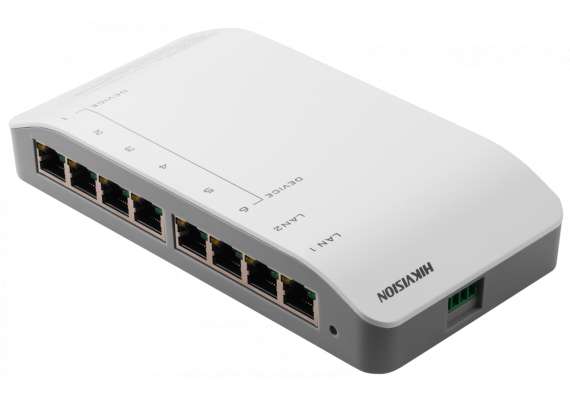

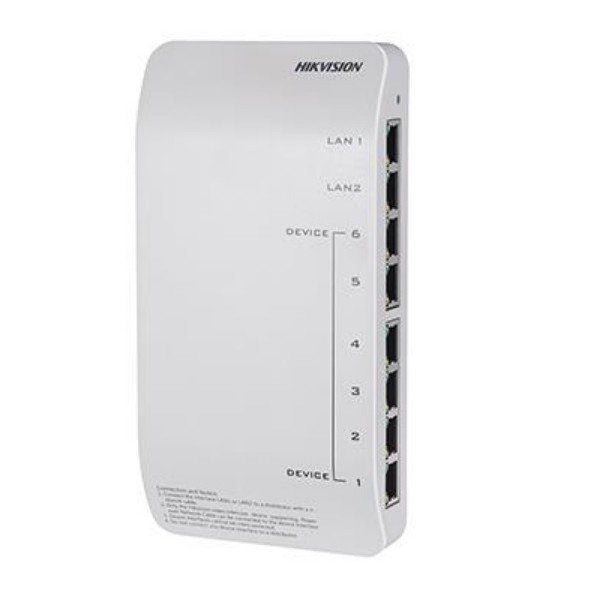

Hikvision DS-KAD606-P Video/Audio Distributor
8 RJ-45 interfaces, including 6 adaptive 10/100 Mbps LAN interfaces supporting network cable powering and 2 adaptive 10/100 Mbps cascading LAN interfaces
Up to 8 distributors can be cascaded
6 adaptive 10/100 Mbps LAN interfaces supports providing 24 VDC for video intercom devices
IEEE802.3, IEEE802.3u, IEEE802.3x
Storing and forwarding function
