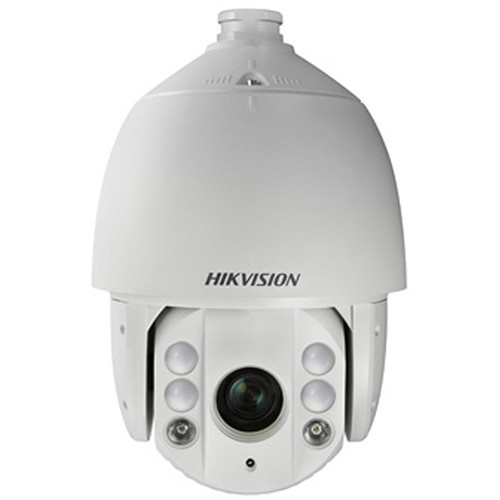

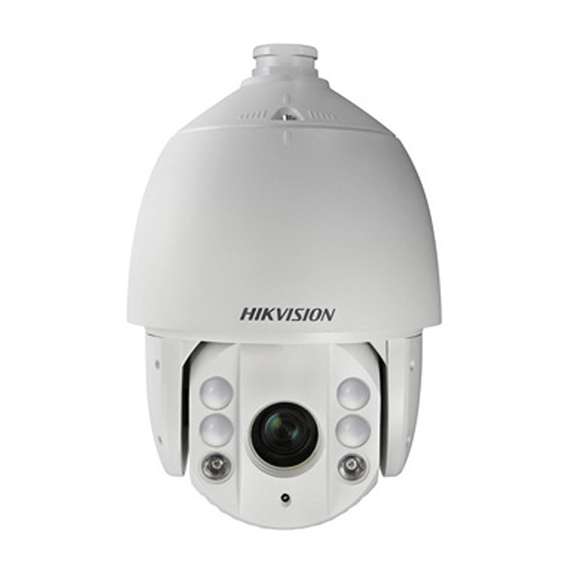

Hikvision Value Series DS-2DE7530IW-AE 5MP Outdoor PTZ Network Dome Camera

The Value Series DS-2DE7530IW-AE 5MP Outdoor PTZ Network Dome Camera from Hikvision uses a 1/1.9" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 492' of night vision. The camera's 5.9-177mm varifocal lens delivers a 51.3-2.7° field of view. The camera features endless panning, a -15 to 90° tilt range, and 30x optical zoom. Two-way audio is possible thanks to an audio I/O. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This PTZ camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.

IR cut filter enables day and night functionality

Smart IR

IR control

H.265+, H.265, H.264+, H.264, and MJPEG video compression

30x optical and 16x digital zoom

Zoom speed of 4.8 seconds

0.4 to 59" working distance

Auto, semi-auto, and manual focus modes

92 dB digital wide dynamic range

Auto and manual gain control

White balance modes include auto, manual, ATW, indoor, outdoor, daylight lamp, and sodium lamp

3D-DNR

Defog

Electronic image stabilization (EIS)

Regional exposure and focus

8 programmable privacy masks

Region of interest (ROI)

Analytics include motion, video tampering, audio exception, intrusion, line crossing, region entrance, and region exiting detection

Dual VCA and ANR smart recording

Up to 32 users with 3 host levels (admin, operator, and user)

Up to 20 channels in simultaneous live view

100M Ethernet port

PoE injector included

Audio I/O

Two alarm inputs and one alarm output

Alarm linkage includes preset, patrol scan, pattern scan, memory card video recording, trigger recording, E-map, VCA capture, upload to FTP, and send email

Compatible with Internet Explorer 8 or higher, Chrome 31 or higher, Firefox 30 or higher, Safari 8.0 or higher, iOS, Android, iVMS-4200, iVMS-4500, and iVMS-5200

Network-attached storage support

CSA, FCC, CE, and cUL certified

TVS 4000V lightning, surge, and voltage transient protection

PTZ Functions

• Endless panning
• 0.1 to 160°/s pan speed
• 240°/s preset pan speed
• -15 to 90° tilt range (auto flip)
• 0.1 to 120°/s tilt speed
• 200°/s preset tilt speed
• 300 presets
• 8 patrols (up to 32 presets per patrol)
• 4 pattern scans (record time over 10 minutes for each scan)
• Support for proportional zoom, power-off memory, PTZ status display, and preset freezing
• Park action includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, and panorama scan
• Scheduled task includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, and aux output
