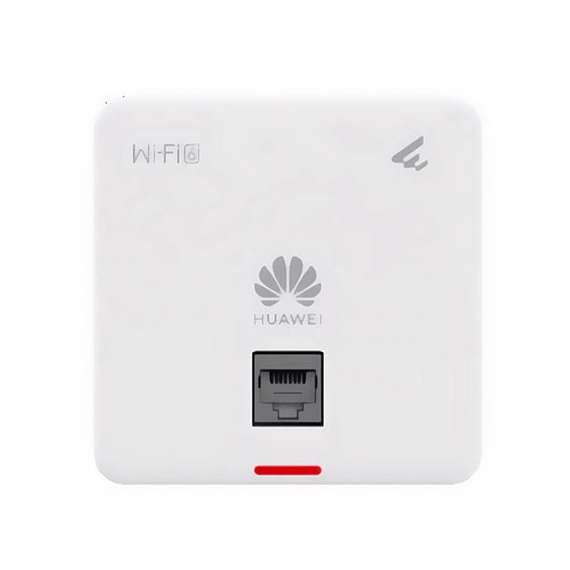

Huawei AP160 Access Point
AP160
Dimensions (H x W x D): 86 mm x 86 mm x 42.5 mm
Weight :0.14 kg
Port type :2 x 10M/100M/1GE electrical ports
LED :indicator Indicates the power-on, startup, running, alarm, and fault states of the system.
Power input PoE power supply: in compliance with IEEE 802.3af
Maximum powerconsumption:9.1 W
Operating temperature:P 0°C to 40°C (If the altitude is in the range of 1800 m to 5000 m, the temperature
decreases by 1°C every time the altitude increases by 300 m.)
Storage temperature:–40°C to +70°C
Operating humidity: 5% to 95% (non-condensing)
Altitude:–60 m to +5000 m
Atmospheric pressure:53 kPa to 106 kPa
Antenna type: Built-in smart antennas
Antenna gain: 2.4 GHz: 3 dBi
5 GHz: 2 dBi
Maximum quantity of SSID on each radio:≤ 6
Device capacity :≤ 128
Maximum transmit power 2.4 GHz: 20 dBm (combined power)
5 GHz: 20 dBm (combined power)
increment:1 dBm
Maximum number of nonoverlapping channels
2.4 GHz (2.412 GHz to 2.472 GHz)
⚫ 802.11b/g
− 20 MHz: 3
⚫ 802.11n
Item Description
− 20 MHz: 3
− 40 MHz: 1
⚫ 802.11ax
− 20 MHz: 3
− 40 MHz: 1
5 GHz (5.18 GHz to 5.825 GHz)
⚫ 802.11a
− 20 MHz: 13
⚫ 802.11n
− 20 MHz: 13
− 40 MHz: 6
⚫ 802.11ac
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
⚫ 802.11ax
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
Weight :0.14 kg
Port type :2 x 10M/100M/1GE electrical ports
LED :indicator Indicates the power-on, startup, running, alarm, and fault states of the system.
Power input PoE power supply: in compliance with IEEE 802.3af
Maximum powerconsumption:9.1 W
Operating temperature:P 0°C to 40°C (If the altitude is in the range of 1800 m to 5000 m, the temperature
decreases by 1°C every time the altitude increases by 300 m.)
Storage temperature:–40°C to +70°C
Operating humidity: 5% to 95% (non-condensing)
Altitude:–60 m to +5000 m
Atmospheric pressure:53 kPa to 106 kPa
Antenna type: Built-in smart antennas
Antenna gain: 2.4 GHz: 3 dBi
5 GHz: 2 dBi
Maximum quantity of SSID on each radio:≤ 6
Device capacity :≤ 128
Maximum transmit power 2.4 GHz: 20 dBm (combined power)
5 GHz: 20 dBm (combined power)
increment:1 dBm
Maximum number of nonoverlapping channels
2.4 GHz (2.412 GHz to 2.472 GHz)
⚫ 802.11b/g
− 20 MHz: 3
⚫ 802.11n
Item Description
− 20 MHz: 3
− 40 MHz: 1
⚫ 802.11ax
− 20 MHz: 3
− 40 MHz: 1
5 GHz (5.18 GHz to 5.825 GHz)
⚫ 802.11a
− 20 MHz: 13
⚫ 802.11n
− 20 MHz: 13
− 40 MHz: 6
⚫ 802.11ac
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
⚫ 802.11ax
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
