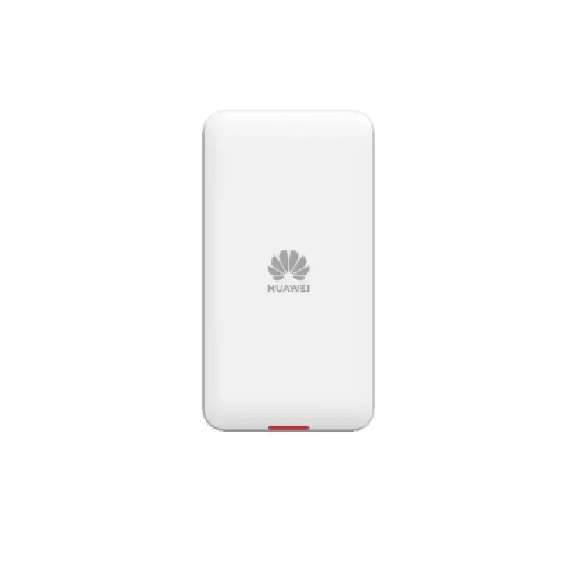

Huawei AP263 Access Point
AP263
Dimensions :(H x W xD)
160 mm x 86 mm x 38 mm
Weight 0.32 kg:
Interface type 2 x 10M/100M/1GE (RJ45)
1 x USB
Bluetooth BLE: 5.0
LED indicator: Indicates the power-on, startup, running, alarm, and fault states of the
system.
Power specifications Power input ⚫ DC: 12 V ± 10%
⚫ PoE power supply: in compliance with 802.3af
Maximum power consumption:
12 W (excluding USB)
Operating temperature:
0°C to 40°C
Storage temperature:-40°C to +70°C
Operating humidity:5% to 95% (non-condensing)
Altitude:-60 m to +5000 m
Atmospheric pressure:53 kPa to 106 kPa
Radio specifications Antenna type Built-in smart antennas
Antenna gain 2.4 GHz: 2 dBi
5 GHz: 3 dBi
Maximum number of :≤ 16
Maximum number of users:
≤ 256
Maximum transmitpower
2.4 GHz: 23 dBm (combined power)
5 GHz: 23 dBm (combined power)
Power increment 1 dBm
Maximum number of non-overlapping channels
2.4 GHz (2.412 GHz to 2.472 GHz)
⚫ 802.11b/g
− 20 MHz: 3
⚫ 802.11n
− 20 MHz: 3
− 40 MHz: 1
⚫ 802.11ax
− 20 MHz: 3
− 40 MHz: 1
5 GHz (5.18 GHz to 5.825 GHz)
⚫ 802.11a
− 20 MHz: 13
⚫ 802.11n
− 20 MHz: 13
− 40 MHz: 6
⚫ 802.11ac
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
− 160 MHz: 1
⚫ 802.11ax
− 20 MHz: 13
− 40 MHz: 6
− 80 MHz: 3
− 160 MHz: 1
