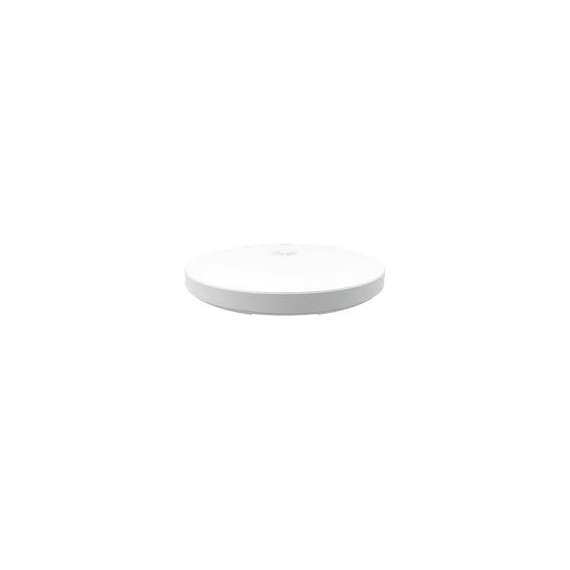

Huawei AP362 Access Point
AP362
Dimensions (Diameterx Height):
Φ180 mm x 35 mm
Weight: 0.51 kg
Interface type:1 x 10M/100M/1GE (RJ45)
NOTE
⚫ GE supports PoE input.
LED indicator Indicates the:power-on, startup, running, alarm, and fault states of the
system.
Power specifications Power input:
⚫ DC: 12 V ± 10%
⚫ PoE power supply: in compliance with 802.3af
Maximum power consumption:11.2 W
Operatingtemperature:-10°C to +50°C
Storage temperature:-40°C to +70°C
Operating humidity: 5% to 95% (non-condensing)
Altitude: -60 m to +5000 m
Atmospheric pressure:53 kPa to 106 kPa
Radio specifications Antenna type Built-in smart antennas
Antenna gain 2.4 GHz: 4 dBi
5 GHz: 4 dBi
The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are
combined is 2 dBi at 2.4 GHz or 3 dBi at 5 GHz.
Maximum number of SSIDs for each radio:≤ 16
Maximum number of users:≤ 256
power:
2.4 GHz: 20 dBm (combined power)
5 GHz: 20 dBm (combined power)
NOTE
The actual transmit power depends on local laws and regulations.
Power increment 1 dBm
Maximum number of non-overlapping channels:2.4 GHz (2.412 GHz to 2.472 GHz
Φ180 mm x 35 mm
Weight: 0.51 kg
Interface type:1 x 10M/100M/1GE (RJ45)
NOTE
⚫ GE supports PoE input.
LED indicator Indicates the:power-on, startup, running, alarm, and fault states of the
system.
Power specifications Power input:
⚫ DC: 12 V ± 10%
⚫ PoE power supply: in compliance with 802.3af
Maximum power consumption:11.2 W
Operatingtemperature:-10°C to +50°C
Storage temperature:-40°C to +70°C
Operating humidity: 5% to 95% (non-condensing)
Altitude: -60 m to +5000 m
Atmospheric pressure:53 kPa to 106 kPa
Radio specifications Antenna type Built-in smart antennas
Antenna gain 2.4 GHz: 4 dBi
5 GHz: 4 dBi
The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are
combined is 2 dBi at 2.4 GHz or 3 dBi at 5 GHz.
Maximum number of SSIDs for each radio:≤ 16
Maximum number of users:≤ 256
power:
2.4 GHz: 20 dBm (combined power)
5 GHz: 20 dBm (combined power)
NOTE
The actual transmit power depends on local laws and regulations.
Power increment 1 dBm
Maximum number of non-overlapping channels:2.4 GHz (2.412 GHz to 2.472 GHz
