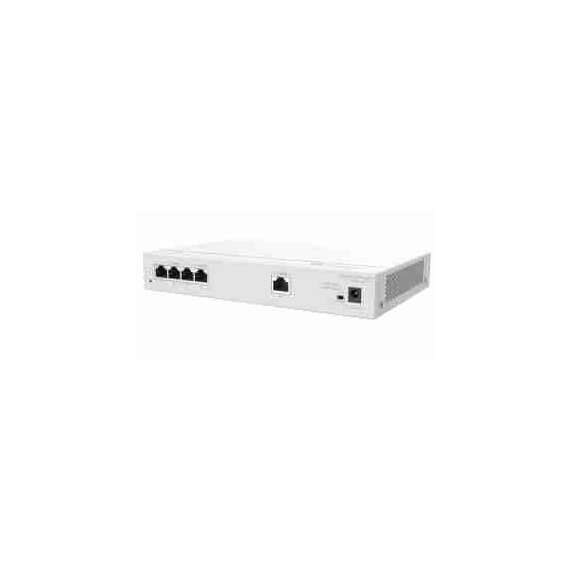

Huawei S380-L4P1T Router

Dimensions without packaging (H x W x D) [mm(in.)]:
Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)

Dimensions with packaging (H x W x D) [mm(in.)]:90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.)
Chassis height [U]:0.8 U
Chassis material:Metal
Weight without packaging [kg(lb)]:0.9 kg (1.98 lb)
Weight with packaging [kg(lb)]: 1.1 kg (2.43 lb)
Typical power consumption [W]:7.19 W
Typical heat dissipation [BTU/hour]:24.5 BTU/hour
Maximum power consumption [W]:61.65 W (PoE: 50 W)
Maximum heat dissipation [BTU/hour]:210.4 BTU/hour
Static power consumption [W]:4.54 W
Noise at normal temperature (acoustic power) [dB(A)]Noise-free (no fans): < 30
Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans):< 20
Number of card slots:0
Number of power slots:0
Number of fans modules:0
Switching capacity:To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Packet forwarding rate:To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
Uplink ports:1 x GE WAN
Downlink ports:1 x GE WAN, 4 x GE LAN (50 W PoE+)
Redundant power supply:Not supported
Long-term operating temperature [°C(°F)]:0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]:–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]:0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]:0-5000 m (0-16404 ft.)
Power supply mode:Power adapter
Rated input voltage:[V]
Power adapter input: 100–240 V AC; 50/60 Hz

Power adapter output: 56 V DC

Input voltage range [V] Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A]:1.07 A
Memory DDR4: 512 MB
Flash memory NAND Flash: 512 MB
Console port:Not supported
Eth Management port:LAN port
USB:Not supported
RTC:Not supported
RPS input:Not supported
Service port surge protection [kV]:Common mode: ±4 kV
Power supply surge protection [kV]:Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof):IP20
Types of fans:None
Heat dissipation mode:Natural heat dissipation
PoE Supported
