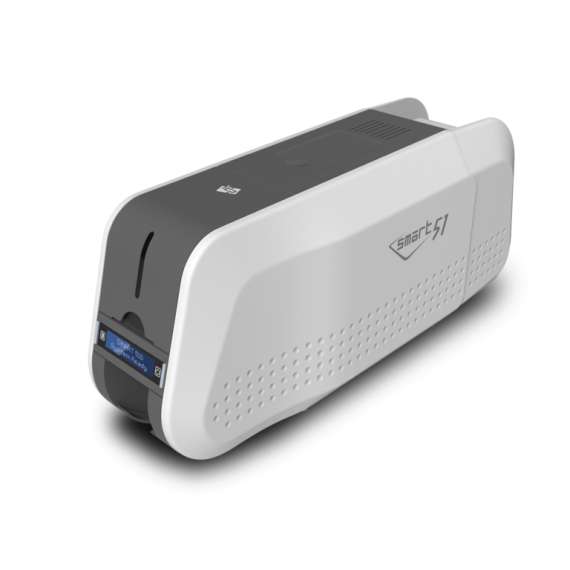

IDP SMART 51D Dual Sided ID Card Printer

Overview

Colour & Mono Single & Dual Sided Printing
Print Speed: Max. 22 sec/card (YMCKOK)
300DPI
Edge-to-Edge Printing
2 Lines LCD with LED Buttons for Front Operation
Support of Transparent Cards
Low Cost Security with UV Printing
Installable Encoders: MS, Contact & Contactless
Upgradable Modules: Flipper, Laminator, Ethernet, WiFi


Typical Applications

Identification Cards
Membership / Loyalty Cards
Staff / Employee Pass
Visitor Badges
University / Student Pass
Conference Cards
Bank Cards: Personalisation of Credit / Debit Cards


Options & Upgrades

The standard SMART printer can be upgraded to any option you desire.

Magnetic Stripe Encoder
Contactless Encoder
IC Contact Encoder
Ethernet
WiFi

Specification

Printing

Print Mode

Dual Sided

Print Type

Direct Dye-Sublimation

Print Area

Edge to Edge

Resolution

300 dpi (Colour & Mono); 600dpi & 1200dpi (Mono only)



Dual Sided Printing

Yes
Card

Card Feeding

Automatic

Card Size

ISO CR80 or ISO CR79 (Option-Factory installed)

Card Thickness

0.38mm (15mil) ~ 1.0mm (40mil)

Card Type

PVC, PET, Composite PVC
Print Speed

Monochrome

5 sec/card (720 cards/hour)

YMCKO

Max. 17 sec/card (212 cards/hour)

YMCKOK

Max. 22 sec/card (164 cards/hour)
Capacity

Input Card Hopper

100 Cards / 200 Cards with cover open

Output Card Hopper

Front : 40 Cards / Rear : 100 Cards (Optional Rear-side Stacker)
System

Memory

64MB RAM

Interface

2 Line LCD / 2 LED Buttons

Supported Platforms

Microsoft Windows 7/8/10, Mac OS, Linux

Communication

USB, Ethernet (Option), WiFi (Option)

Power Supply

Free Voltage (AC100/220V, 50~60Hz)

Power Consumption

48W

Temperature

15~35℃

Humidity

35~70%
Dimensions

Physical Lock

Input Hopper & Ribbon (Option)

Station Itself

Kensington Lock (Option)
Dimensions

Milimeter

165 (W) x 498 (L) x 210 (H)

Inch

6.5 (W) x 19.6 (L) x 8.3 (H)
Weight

Kg / Lbs

5.2 / 11.5
Encoding Option

Magnetic

ISO 7811 (Track I, II, III Read/Write, HiCo/LoCo), JIS II

Contact

ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card

Contactless

ISO 14443 (Type A/B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
Encoding Option

Certifications

CB, CE, FCC, KC, CCC
